SD01 specific spanning reads analysis

Getting specific spanning reads for the variability in the shared region for SD01. The read and overall sample quality of SD01 is poor (fragile DNA) so assembly and long read depth is hard to achieve. This plus the fact that basically from this shared region to the end chromosomes 11 and hybrid 13-11 are perfectly copied (a region close to 200kb) it’s hard to assembly at baseline. For this reason to help support the claim that the hybrid genome 13 exist we can link the same amount of variation seen within the shared region between 11 and 13 to try to link variation within this region to reads that span chromosome 13 into this region. If variation specific to only to chromosome 13 reads are also contained within reads that then span from within the shared region into chromosome 11 sequence (either on the hybrid 13-11 or into 11 since from the shared region to the end of the chromosome this sequence is identical within the 3D7 hybrid genome so reads should be able to multi-map to both these regions).

These regions below have variation within the strain SD01 within the 15.3kb shared region between 11 and 13.

Code

finalHrpSubwindows_regions_withSD01MultiInShared = readr::read_tsv("../../../../Windows_Surrounding_HRP2_3_deletions/windowAnalysis/finalHrpSubwindows_regions_withSD01MultiInShared.bed", col_names = F)
create_dt(finalHrpSubwindows_regions_withSD01MultiInShared)

Determine the locations within hybrid genome in order to pull the long reads from the alignments to the hybrid (core 3D7 genome plus hybrid chromosomes chr11-chr13, chr13-chr11) genome

Code

cd ../../../../Windows_Surrounding_HRP2_3_deletions/windowAnalysis/
elucidator getFastaWithBed  --twoBit /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.2bit --overWrite --bed finalHrpSubwindows_regions_withSD01MultiInShared.bed --out finalHrpSubwindows_regions_withSD01MultiInShared.fasta

elucidator determineRegionLastz --identity 100 --coverage 100 --fasta finalHrpSubwindows_regions_withSD01MultiInShared.fasta --individual --genome /tank/data/genomes/plasmodium/genomes/pf_hybrid/genomes/Pf3D7_plus_11-13_13-11_hybrid.fasta | sort | uniq > raw_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed
# have to do this cause LASTZ bugs out and doesn't do the matching of Pf3D7_11_v3 1924680 1924740 Pf3D7_11_v3-1924664-1924740-for__var-0 60 + for whatever goodness forsaken reason

cut -f1-6 finalHrpSubwindows_regions_withSD01MultiInShared.bed raw_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed | sort | uniq > finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed

elucidator getOverlappingBedRegions --bed finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --intersectWithBed ../../sharedBetween11_and_13/investigatingChrom11Chrom13/shared_11_13_region_onPureHybrid.bed  | cut -f1-6 > finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed

Get the nanopore/pacbio reads that intersect this region

Code

cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore
elucidator bamToBed --bam hybridAlnsMinimap2/PfSD01PermethION.sorted.bam | elucidator getOverlappingBedRegions --bed STDIN --intersectWithBed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --overWrite --out PfSD01PermethION_intersecting_withSD01MultiInShared.bed

cd /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies
elucidator bamToBed --bam hybridAlnsMinimap2/PfSD01.sorted.bam | elucidator getOverlappingBedRegions --bed STDIN --intersectWithBed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --overWrite --out PfSD01Pacbio_intersecting_withSD01MultiInShared.bed

Code

homologousRegionWithHybrid = readr::read_tsv("../../../../sharedBetween11_and_13/investigatingChrom11Chrom13/combined_shared_11_13_region.bed", col_names = F)
multiRegion = readr::read_tsv("../../../../Windows_Surrounding_HRP2_3_deletions/windowAnalysis/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed", col_names = F)

Plotting intersected long reads

Shared region is shown in red, the regions within wich SD01 has variation are shown in blue

Code

PfSD01PermethION = readr::read_tsv("PfSD01PermethION_intersecting_withSD01MultiInShared.bed", col_names = F) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by()
PfSD01Pacbio = readr::read_tsv("PfSD01Pacbio_intersecting_withSD01MultiInShared.bed", col_names = F) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by()

PfSD01PermethION_filt = PfSD01PermethION %>%
  left_join(
    homologousRegionWithHybrid %>%
      rename(sharedStart = X2,
             sharedStop = X3) %>%
      select(X1, starts_with("shared"))
  ) %>%
  filter((X2 < sharedStart & X3 > sharedStart)
         |
           (X2 < sharedStop & X3 > sharedStop)) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by()

PfSD01Pacbio_filt = PfSD01Pacbio %>%
  left_join(
    homologousRegionWithHybrid %>%
      rename(sharedStart = X2,
             sharedStop = X3) %>%
      select(X1, starts_with("shared"))
  ) %>%
  filter((X2 < sharedStart & X3 > sharedStart)
         |
           (X2 < sharedStop & X3 > sharedStop)) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by()

Nanopore

Code

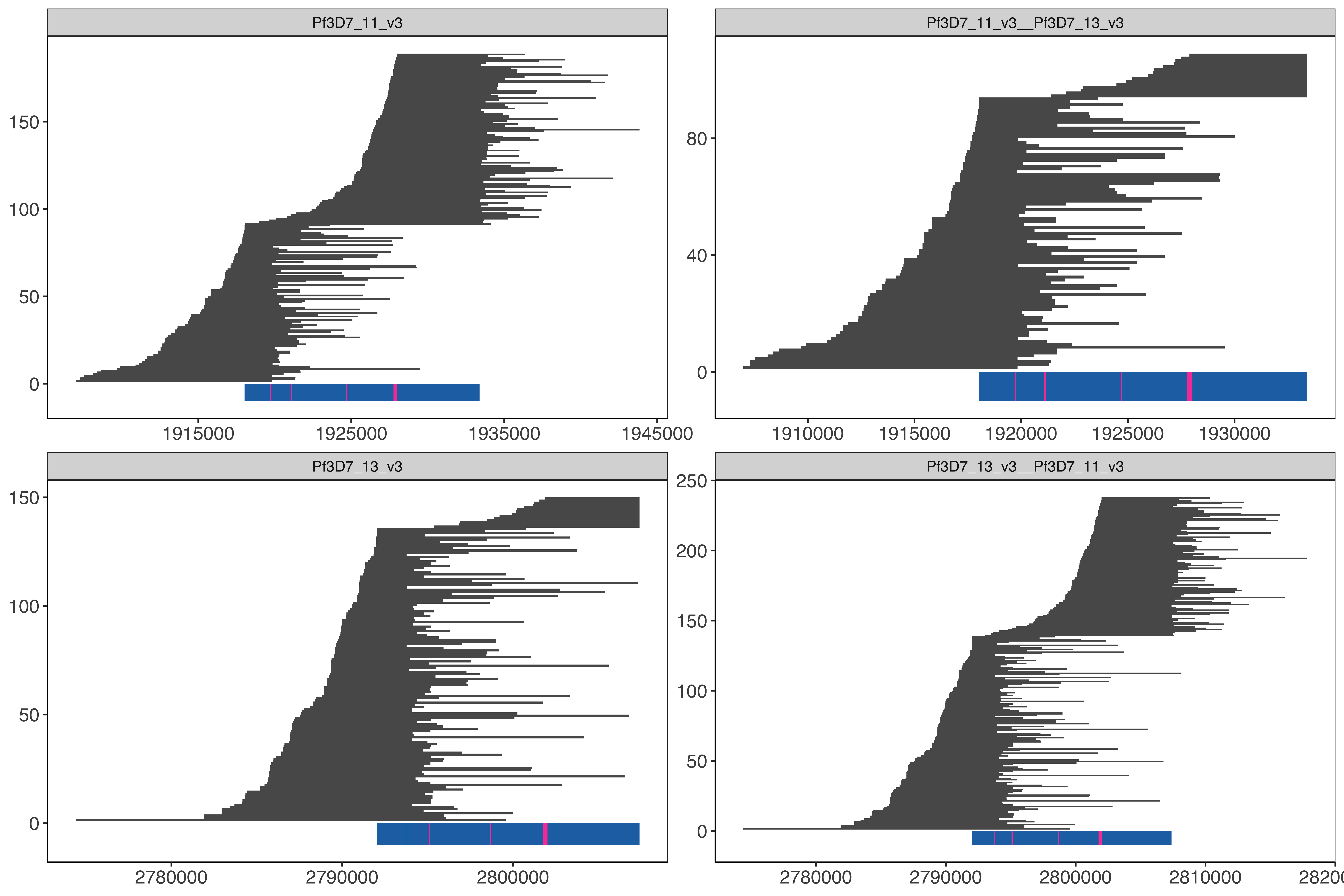

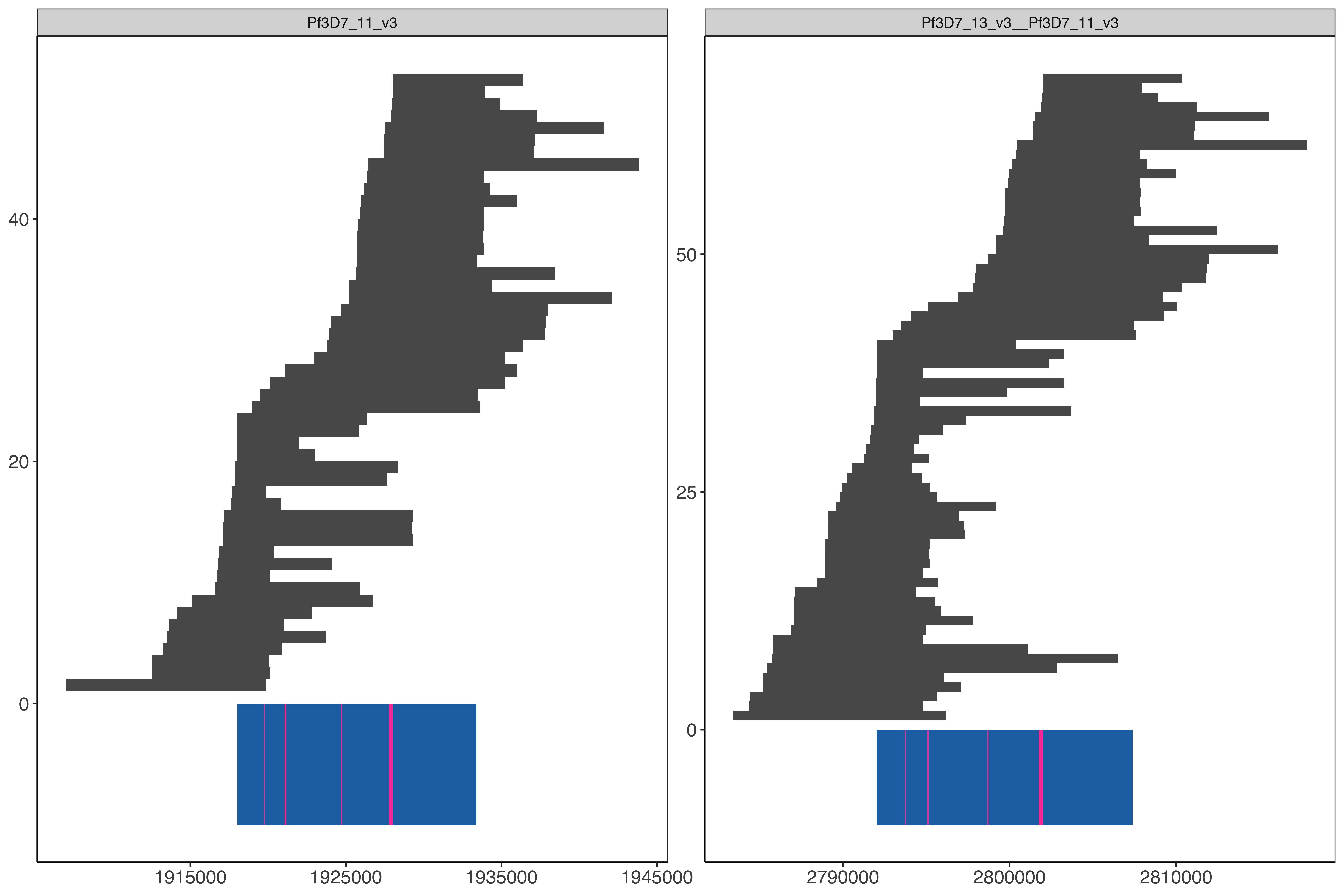

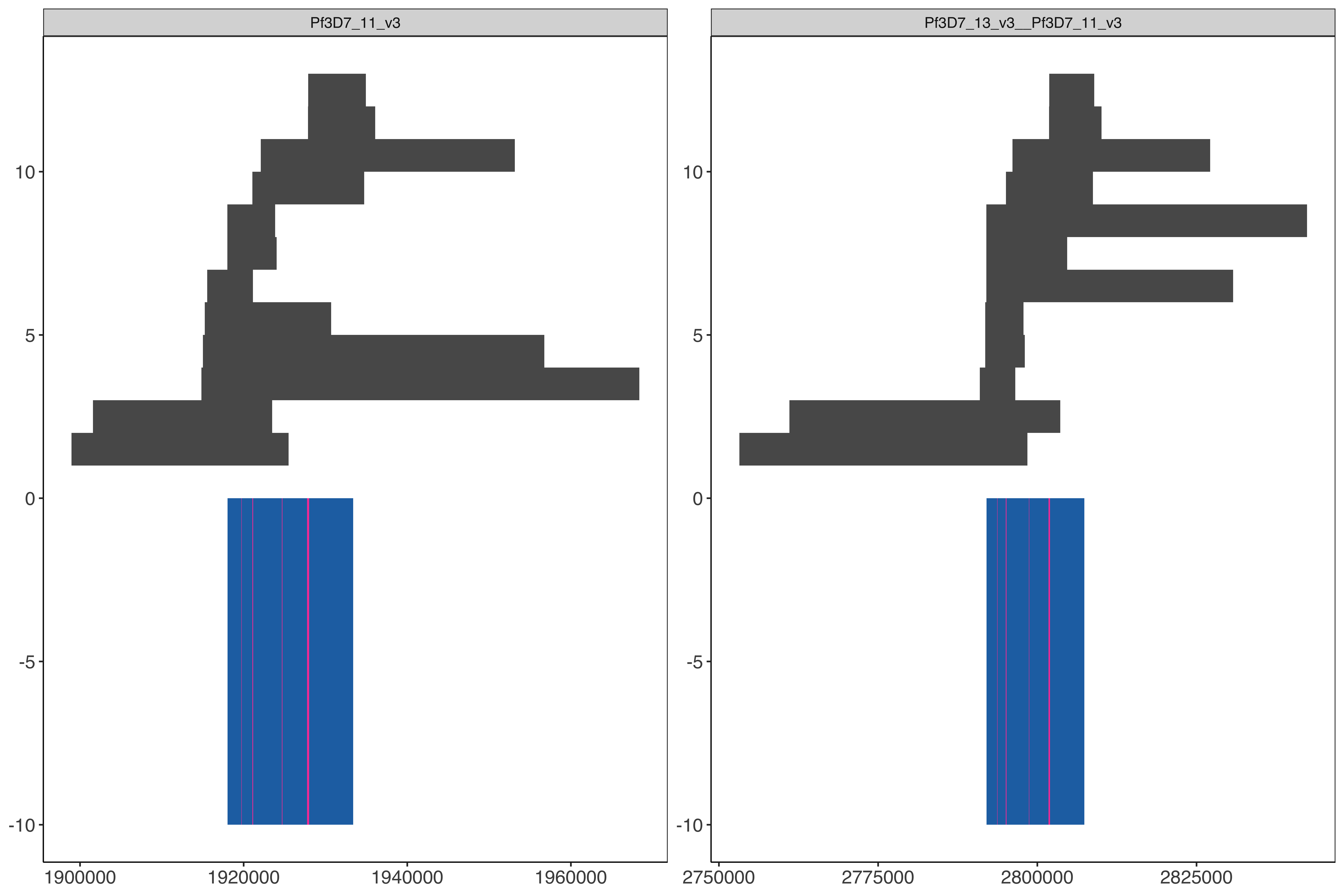

ggplot() +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = rowid,
                ymax = rowid + 1),
            data = PfSD01PermethION_filt)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegion) +
  sofonias_theme +
  facet_wrap(~X1, scales = "free")

Pacbio

Code

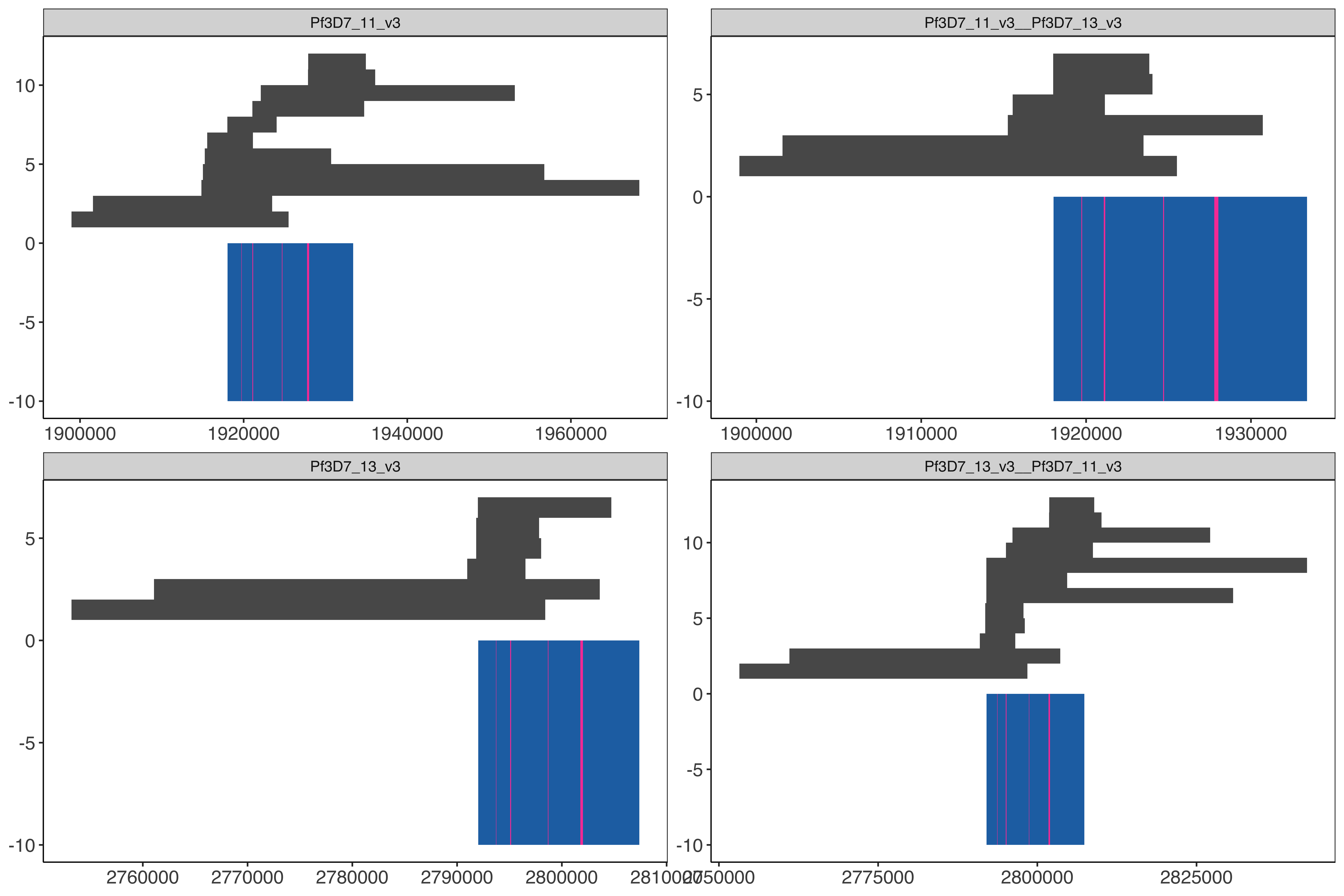

ggplot() +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = rowid,
                ymax = rowid + 1),
            data = PfSD01Pacbio_filt)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegion)+
  sofonias_theme +
  facet_wrap(~X1, scales = "free")

Extracting and typing reads

Extracting long reads

Code


cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore
cd PfSD01_withSD01MultiInShared_extractions

elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/hybridAlnsMinimap2/PfSD01PermethION.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --trimToRegion --overWriteDir --dout PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions --rename

elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies/hybridAlnsMinimap2/PfSD01.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --trimToRegion --overWriteDir --dout PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions --rename

Add in illumina reads to help with error correcting

Code

elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/data/plasmodium/falciparum/pfdata/bams/PfSD01.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared.bed --trimToRegion --overWriteDir --dout PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions --rename

mkdir PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions

for x in PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix illumina_; done;
for x in PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix nano_; done;
for x in PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix pacbio_; done;

Concatenate reads and add the extraction info

Code

for x in PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/prepended_Pf3D7*gz; do cat ${x} PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/$(basename ${x}) PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/$(basename ${x}) > PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/$(basename ${x} | sed 's/prepended_//g'); done;

cat PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/prepended_Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz  PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/prepended_Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz  > PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz

rsync -raPh PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/illumina_extraction_nameKey.tab.txt
rsync -raPh PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/nano_extraction_nameKey.tab.txt
rsync -raPh PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/pacbio_extraction_nameKey.tab.txt

Cluster the reads using clustering meant for error prone long reads elucidatorlab kmerClusteringRate to help type the reads.

Code

cd PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions
for x in Pf3D7_11_v3-19*gz; do elucidatorlab kmerClusteringRate --qualThres 7,5 --cutOff 0.1 --idCutOff 0.80 --numThreads 15 --lqMismatches 2 --oneBaseIndel 5 --twoBaseIndel 2 --map --recalcConsensus --checkChimeras --overWriteDir --writeInitialClusters --sizeCutOff 10  --fastq  ${x} --dout clustering_${x%%.fastq.gz} --postCollapseForceOneComp; done;
elucidator rBind --contains clusterNames.tab.txt --recursive --delim tab --header --overWrite --out allClusterNames.tab.txt

Renaming

Type the reads based on their clustering

Code

allClusterNames = readr::read_tsv("allClusterNames.tab.txt")

allClusterNames_filt = allClusterNames %>%
  filter(!grepl("_t0\\.[0-9]*", readName)) %>%
  filter("Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.2_t12" != clusterName) %>%
  mutate(region = gsub("\\.fastq.*", "", clusterName)) %>%
  mutate(clusterID = gsub(".*\\.fastq\\.", "", clusterName)) %>%
  mutate(clusterID = gsub("_t[0-9\\.]*", "", clusterID)) %>%
  mutate(regionID = paste0(region, ".", clusterID))

illuminaExtraction = readr::read_tsv("illumina_extraction_nameKey.tab.txt") %>%
  mutate(newName = paste0("illumina_", newName))
pacbioExtraction = readr::read_tsv("pacbio_extraction_nameKey.tab.txt") %>%
  mutate(newName = paste0("pacbio_", newName))
nanoExtraction = readr::read_tsv("nano_extraction_nameKey.tab.txt") %>%
  mutate(newName = paste0("nano_", newName))

bothExtraction = bind_rows(pacbioExtraction,
                           nanoExtraction)


bothExtraction_filt = bothExtraction %>%
  filter(newName %in% allClusterNames_filt$readName) %>%
  mutate(genomeID = paste0(`#chrom`, "-", start, "-", end)) %>%
  left_join(allClusterNames_filt %>%
              rename(newName = readName) %>%
              select(newName, region, regionID)) %>%
  select(-newName) %>%
  spread(region, regionID) %>%
  replace_na(
    list(
    `Pf3D7_11_v3-1919677-1919761-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1921054-1921153-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1924664-1924740-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1927700-1928008-for__var-0` = "notTypeable")
  )

illuminaExtraction_filt = illuminaExtraction %>%
  filter(newName %in% allClusterNames_filt$readName) %>%
  mutate(genomeID = paste0(`#chrom`, "-", start, "-", end)) %>%
  left_join(allClusterNames_filt %>%
              rename(newName = readName) %>%
              select(newName, region, regionID)) %>%
  select(-newName) %>%
  spread(region, regionID) %>%
  replace_na(
    list(
    `Pf3D7_11_v3-1919677-1919761-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1921054-1921153-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1924664-1924740-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1927700-1928008-for__var-0` = "notTypeable")
  )

bothExtraction_filt_counts = bothExtraction_filt %>%
  group_by(`Pf3D7_11_v3-1919677-1919761-for__var-0`,
          `Pf3D7_11_v3-1921054-1921153-for__var-0`,
          `Pf3D7_11_v3-1924664-1924740-for__var-0`,
          `Pf3D7_11_v3-1927700-1928008-for__var-0`) %>%
  count()

create_dt(bothExtraction_filt_counts)

Typed intersected reads

Typing the reads by the variants within each of the 4 regions, the current region typing the read by is colored pink in the shared region below. If a read didn’t cover the region or there was too much error to confidently type it then it’s colored as “untypeable”.

Code

outBound = 5000

bothExtraction_filt_mod = bothExtraction_filt %>%
  group_by(`#chrom`) %>%
  arrange(`#chrom`, start, end )%>%
  mutate(rowid = row_number()) %>%
  mutate(X1 = `#chrom`) %>%
  left_join(
    homologousRegionWithHybrid %>%
      rename(sharedStart = X2,
             sharedStop = X3) %>%
      select(X1, starts_with("shared"))
  ) %>%
  filter((start < sharedStart & end > sharedStart)
         |
           (start < sharedStop & end > sharedStop)) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by() %>%
  mutate(startDiff = sharedStart - start,
         endDiff = sharedStop - end) %>%
  mutate(start = ifelse(start < sharedStart - outBound, sharedStart - outBound, start),
         end =   ifelse(end > sharedStop + outBound, sharedStop + outBound, end))

illuminaExtraction_filt_mod = illuminaExtraction_filt %>%
  group_by(`#chrom`) %>%
  arrange(`#chrom`, start, end )%>%
  mutate(rowid = row_number()) %>%
  mutate(X1 = `#chrom`) %>%
  left_join(
    homologousRegionWithHybrid %>%
      rename(sharedStart = X2,
             sharedStop = X3) %>%
      select(X1, starts_with("shared"))
  )

Code

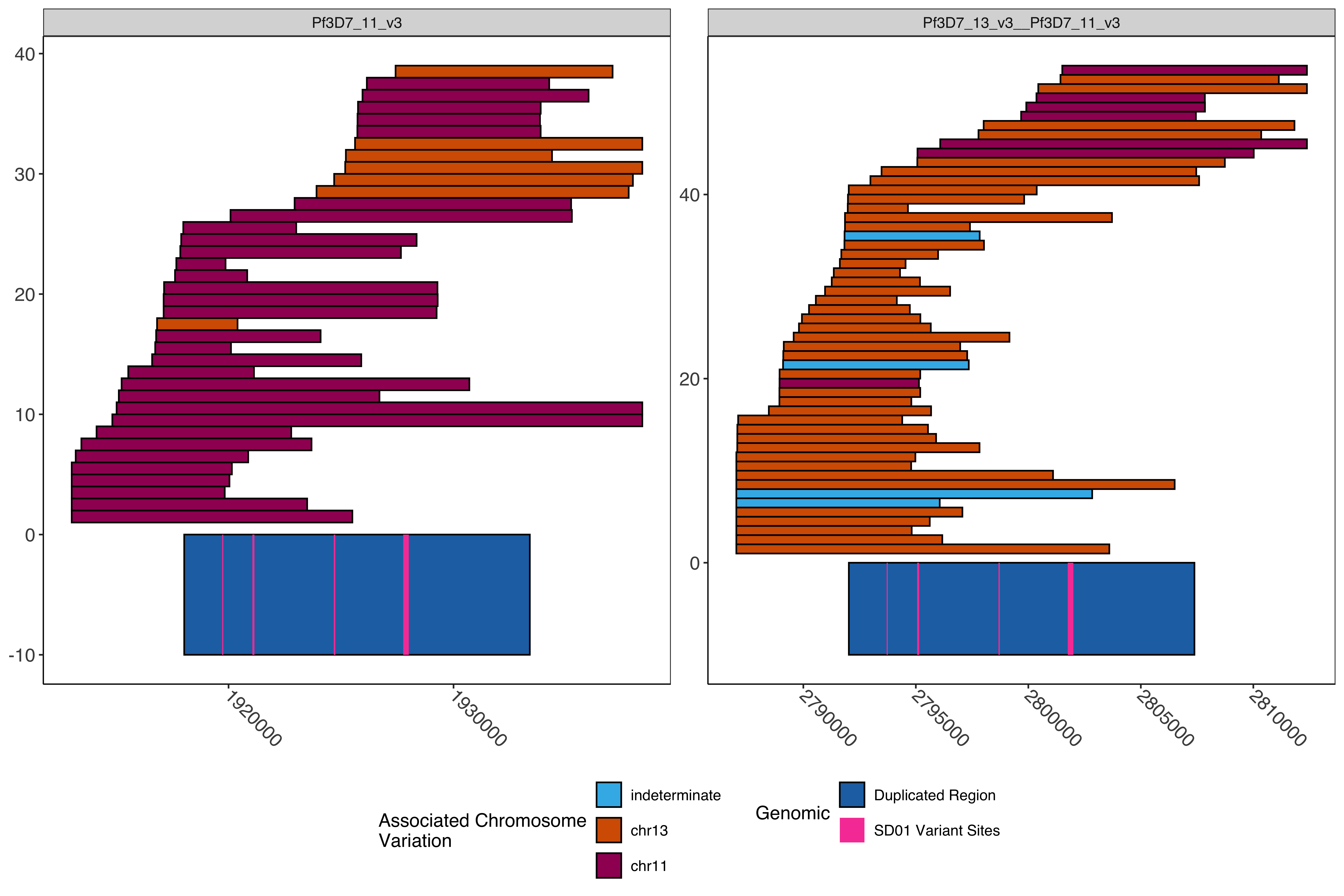

ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = `Pf3D7_11_v3-1919677-1919761-for__var-0`),
            data = bothExtraction_filt_mod)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegion) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F0E442",
            data = multiRegion %>%
              filter(X4 == "Pf3D7_11_v3-1919677-1919761-for__var-0"))  +
  sofonias_theme +
  facet_wrap(~X1, scales = "free") +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    guide = guide_legend(
      ncol = 1
    )
  ) +
  labs(title = "Pf3D7_11_v3-1919677-1919761-for__var-0")

Code

ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = `Pf3D7_11_v3-1921054-1921153-for__var-0`),
            data = bothExtraction_filt_mod)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegion) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F0E442",
            data = multiRegion %>%
              filter(X4 == "Pf3D7_11_v3-1921054-1921153-for__var-0"))  +
  sofonias_theme +
  facet_wrap(~X1, scales = "free") +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    guide = guide_legend(
      ncol = 1
    )
  ) +
  labs(title = "Pf3D7_11_v3-1921054-1921153-for__var-0")

Code

ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = `Pf3D7_11_v3-1924664-1924740-for__var-0`),
            data = bothExtraction_filt_mod)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegion)+
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F0E442",
            data = multiRegion %>%
              filter(X4 == "Pf3D7_11_v3-1924664-1924740-for__var-0")) +
  sofonias_theme +
  facet_wrap(~X1, scales = "free") +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    guide = guide_legend(
      ncol = 1
    )
  ) +
  labs(title = "Pf3D7_11_v3-1924664-1924740-for__var-0")

Code

ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = `Pf3D7_11_v3-1927700-1928008-for__var-0`),
            data = bothExtraction_filt_mod)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegion)+
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F0E442",
            data = multiRegion %>%
              filter(X4 == "Pf3D7_11_v3-1927700-1928008-for__var-0")) +
  sofonias_theme +
  facet_wrap(~X1, scales = "free") +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    guide = guide_legend(
      ncol = 1
    )
  ) +
  labs(title = "Pf3D7_11_v3-1927700-1928008-for__var-0")

Processing on pure hybrid

The same exact work flow as above but except hybrid genome was modified to include only the expected regular chromosome 11 and the hybrid 13-11 (which is the expected hybrid genome for SD01). This way it is easier to deal with less multi mappers when so much genome was duplicated to map to.

Code

cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore
mkdir purehybridAlnsMinimap2
minimap2 -x map-ont -t 40 -a /tank/data/genomes/plasmodium/genomes/pf_hybrid/genomes/Pf3D7_pure_11-13_13-11_hybrid.fasta rawFastq/PfSD01PermethION.fastq.gz | samtools sort --threads 40 -o purehybridAlnsMinimap2/PfSD01PermethION.sorted.bam
samtools index purehybridAlnsMinimap2/PfSD01PermethION.sorted.bam

cd /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies
mkdir purehybridAlnsMinimap2
minimap2 -x map-hifi -t 48 -a /tank/data/genomes/plasmodium/genomes/pf_hybrid/genomes/Pf3D7_pure_11-13_13-11_hybrid.fasta rawFastq/ERR1036246.fastq.gz   | samtools sort --threads 48 -o purehybridAlnsMinimap2/PfSD01.sorted.bam && samtools index purehybridAlnsMinimap2/PfSD01.sorted.bam

Code

cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore
elucidator bamToBed --bam purehybridAlnsMinimap2/PfSD01PermethION.sorted.bam | elucidator getOverlappingBedRegions --bed STDIN --intersectWithBed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed --overWrite --out PfSD01PermethION_intersecting_withSD01MultiInShared_pureHybrid.bed

cd /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies
elucidator bamToBed --bam purehybridAlnsMinimap2/PfSD01.sorted.bam | elucidator getOverlappingBedRegions --bed STDIN --intersectWithBed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed --overWrite --out PfSD01Pacbio_intersecting_withSD01MultiInShared_pureHybrid.bed

Code

homologousRegionWithPureHybrid = readr::read_tsv("../../../../sharedBetween11_and_13/investigatingChrom11Chrom13/shared_11_13_region_onPureHybrid.bed", col_names = F, skip = 1)
multiRegionPureHybrid = readr::read_tsv("../../../../Windows_Surrounding_HRP2_3_deletions/windowAnalysis/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed", col_names = F)

Code

PfSD01PermethION = readr::read_tsv("againstPureHybrid/PfSD01PermethION_intersecting_withSD01MultiInShared_pureHybrid.bed", col_names = F) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by()
PfSD01Pacbio = readr::read_tsv("againstPureHybrid/PfSD01Pacbio_intersecting_withSD01MultiInShared_pureHybrid.bed", col_names = F) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by()

PfSD01PermethION_filt = PfSD01PermethION %>%
  left_join(
    homologousRegionWithHybrid %>%
      rename(sharedStart = X2,
             sharedStop = X3) %>%
      select(X1, starts_with("shared"))
  ) %>%
  filter((X2 < sharedStart & X3 > sharedStart)
         |
           (X2 < sharedStop & X3 > sharedStop)) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by()

PfSD01Pacbio_filt = PfSD01Pacbio %>%
  left_join(
    homologousRegionWithHybrid %>%
      rename(sharedStart = X2,
             sharedStop = X3) %>%
      select(X1, starts_with("shared"))
  ) %>%
  filter((X2 < sharedStart & X3 > sharedStart)
         |
           (X2 < sharedStop & X3 > sharedStop)) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by()

Nanopore

Code

ggplot() +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = rowid,
                ymax = rowid + 1),
            data = PfSD01PermethION_filt)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegionPureHybrid) +
  sofonias_theme +
  facet_wrap(~X1, scales = "free")

Pacbio

Code

ggplot() +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = rowid,
                ymax = rowid + 1),
            data = PfSD01Pacbio_filt)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegionPureHybrid)+
  sofonias_theme +
  facet_wrap(~X1, scales = "free")

Extracting and typing reads

Code


cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore
mkdir PfSD01_withSD01MultiInShared_extractions_pureHybrid
cd PfSD01_withSD01MultiInShared_extractions_pureHybrid

elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/purehybridAlnsMinimap2/PfSD01PermethION.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed --trimToRegion --overWriteDir --dout PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions --rename

elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies/purehybridAlnsMinimap2/PfSD01.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed --trimToRegion --overWriteDir --dout PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions --rename

elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/data/plasmodium/falciparum/pfdata/bams/PfSD01.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared.bed --trimToRegion --overWriteDir --dout PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions --rename

mkdir PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions

for x in PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix illumina_; done;
for x in PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix nano_; done;
for x in PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix pacbio_; done;

for x in PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/prepended_Pf3D7*gz; do cat ${x} PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/$(basename ${x}) PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/$(basename ${x}) > PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/$(basename ${x} | sed 's/prepended_//g'); done;

cat PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/prepended_Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz  PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/prepended_Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz  > PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz

rsync -raPh PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/illumina_extraction_nameKey.tab.txt
rsync -raPh PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/nano_extraction_nameKey.tab.txt
rsync -raPh PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/pacbio_extraction_nameKey.tab.txt

cd PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions
for x in Pf3D7_11_v3-19*gz; do elucidatorlab kmerClusteringRate --qualThres 7,5 --cutOff 0.1 --idCutOff 0.80 --numThreads 15 --lqMismatches 2 --oneBaseIndel 5 --twoBaseIndel 2 --map --recalcConsensus --checkChimeras --overWriteDir --writeInitialClusters --sizeCutOff 10  --fastq  ${x} --dout clustering_${x%%.fastq.gz} --postCollapseForceOneComp; done;
elucidator rBind --contains clusterNames.tab.txt --recursive --delim tab --header --overWrite --out allClusterNames.tab.txt

Typing

Code

allClusterNames = readr::read_tsv("againstPureHybrid/allClusterNames.tab.txt")

allClusterNames_filt = allClusterNames %>%
  filter(!grepl("_t0\\.[0-9]*", readName)) %>%
  filter("Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.2_t12" != clusterName) %>%
  mutate(region = gsub("\\.fastq.*", "", clusterName)) %>%
  mutate(clusterID = gsub(".*\\.fastq\\.", "", clusterName)) %>%
  mutate(clusterID = gsub("_t[0-9\\.]*", "", clusterID)) %>%
  mutate(regionID = paste0(region, ".", clusterID))

illuminaExtraction = readr::read_tsv("againstPureHybrid/illumina_extraction_nameKey.tab.txt") %>%
  mutate(newName = paste0("illumina_", newName))
pacbioExtraction = readr::read_tsv("againstPureHybrid/pacbio_extraction_nameKey.tab.txt") %>%
  mutate(newName = paste0("pacbio_", newName))
nanoExtraction = readr::read_tsv("againstPureHybrid/nano_extraction_nameKey.tab.txt") %>%
  mutate(newName = paste0("nano_", newName))

bothExtraction = bind_rows(pacbioExtraction,
                           nanoExtraction)


bothExtraction_filt = bothExtraction %>%
  filter(newName %in% allClusterNames_filt$readName) %>%
  mutate(genomeID = paste0(`#chrom`, "-", start, "-", end)) %>%
  left_join(allClusterNames_filt %>%
              rename(newName = readName) %>%
              select(newName, region, regionID)) %>%
  select(-newName) %>%
  spread(region, regionID) %>%
  replace_na(
    list(
    `Pf3D7_11_v3-1919677-1919761-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1921054-1921153-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1924664-1924740-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1927700-1928008-for__var-0` = "notTypeable")
  )


illuminaExtraction_filt = illuminaExtraction %>%
  filter(newName %in% allClusterNames_filt$readName) %>%
  mutate(genomeID = paste0(`#chrom`, "-", start, "-", end)) %>%
  left_join(allClusterNames_filt %>%
              rename(newName = readName) %>%
              select(newName, region, regionID)) %>%
  select(-newName) %>%
  spread(region, regionID) %>%
  replace_na(
    list(
    `Pf3D7_11_v3-1919677-1919761-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1921054-1921153-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1924664-1924740-for__var-0` = "notTypeable",
    `Pf3D7_11_v3-1927700-1928008-for__var-0` = "notTypeable")
  )

bothExtraction_filt_counts = bothExtraction_filt %>%
  group_by(`Pf3D7_11_v3-1919677-1919761-for__var-0`,
          `Pf3D7_11_v3-1921054-1921153-for__var-0`,
          `Pf3D7_11_v3-1924664-1924740-for__var-0`,
          `Pf3D7_11_v3-1927700-1928008-for__var-0`) %>%
  count()

create_dt(bothExtraction_filt_counts)

Code

outBound = 5000

bothExtraction_filt_mod = bothExtraction_filt %>%
  group_by(`#chrom`) %>%
  arrange(`#chrom`, start, end )%>%
  mutate(rowid = row_number()) %>%
  mutate(X1 = `#chrom`) %>%
  left_join(
    homologousRegionWithPureHybrid %>%
      rename(sharedStart = X2,
             sharedStop = X3) %>%
      select(X1, starts_with("shared"))
  ) %>%
  filter((start < sharedStart & end > sharedStart)
         |
           (start < sharedStop & end > sharedStop)) %>%
  group_by(X1) %>%
  mutate(rowid = row_number()) %>%
  group_by() %>%
  mutate(startDiff = sharedStart - start,
         endDiff = sharedStop - end) %>%
  mutate(start = ifelse(start < sharedStart - outBound, sharedStart - outBound, start),
         end =   ifelse(end > sharedStop + outBound, sharedStop + outBound, end))


illuminaExtraction_filt_mod = illuminaExtraction_filt %>%
  group_by(`#chrom`) %>%
  arrange(`#chrom`, start, end )%>%
  mutate(rowid = row_number()) %>%
  mutate(X1 = `#chrom`) %>%
  left_join(
    homologousRegionWithPureHybrid %>%
      rename(sharedStart = X2,
             sharedStop = X3) %>%
      select(X1, starts_with("shared"))
  )

ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = `Pf3D7_11_v3-1919677-1919761-for__var-0`),
            data = bothExtraction_filt_mod)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegionPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F0E442",
            data = multiRegionPureHybrid %>%
              filter(X4 == "Pf3D7_11_v3-1919677-1919761-for__var-0"))  +
  sofonias_theme +
  facet_wrap(~X1, scales = "free") +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    guide = guide_legend(
      ncol = 1
    )
  ) +
  labs(title = "Pf3D7_11_v3-1919677-1919761-for__var-0")

Code

ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = `Pf3D7_11_v3-1921054-1921153-for__var-0`),
            data = bothExtraction_filt_mod)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegionPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F0E442",
            data = multiRegionPureHybrid %>%
              filter(X4 == "Pf3D7_11_v3-1921054-1921153-for__var-0"))  +
  sofonias_theme +
  facet_wrap(~X1, scales = "free") +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    guide = guide_legend(
      ncol = 1
    )
  ) +
  labs(title = "Pf3D7_11_v3-1921054-1921153-for__var-0")

Code

ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = `Pf3D7_11_v3-1924664-1924740-for__var-0`),
            data = bothExtraction_filt_mod)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegionPureHybrid)+
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F0E442",
            data = multiRegionPureHybrid %>%
              filter(X4 == "Pf3D7_11_v3-1924664-1924740-for__var-0")) +
  sofonias_theme +
  facet_wrap(~X1, scales = "free") +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    guide = guide_legend(
      ncol = 1
    )
  ) +
  labs(title = "Pf3D7_11_v3-1924664-1924740-for__var-0")

Code

ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = `Pf3D7_11_v3-1927700-1928008-for__var-0`),
            data = bothExtraction_filt_mod)  +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#2271B2",
            data = homologousRegionWithPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F748A5",
            data = multiRegionPureHybrid)+
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0),
            fill = "#F0E442",
            data = multiRegionPureHybrid %>%
              filter(X4 == "Pf3D7_11_v3-1927700-1928008-for__var-0")) +
  sofonias_theme +
  facet_wrap(~X1, scales = "free") +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    guide = guide_legend(
      ncol = 1
    )
  ) +
  labs(title = "Pf3D7_11_v3-1927700-1928008-for__var-0")

Linkage between variants

Looking at the linkage between variants by linking each variant within the long reads to each subsequent variant and then linkng the chromosome to the first variant. It appears that all the variants 0.1 are correlated to chromosome 11 and all variants 0.0 are correlated to chromosome 13

Code

# Load package
library(networkD3)

bothExtraction_filt_counts_gat = bothExtraction_filt_counts %>%
  gather(region, haplotype, 1:4)

bothExtraction_filt_counts_gat_hapCounts = bothExtraction_filt_counts_gat %>%
  filter(haplotype != "notTypeable") %>%
  group_by(haplotype) %>%
  summarise(n = sum(n)) %>%
  mutate(haplotypeCoded = row_number())

bothExtraction_filt_counts_hapLinkCounts = tibble()
# for(col1 in 1:3) {
#   for (col2 in (col1 + 1):4) {
#    bothExtraction_filt_counts_gat_subSelection = bothExtraction_filt_counts %>%
#      group_by() %>%
#      select(col1, col2, n)
#    colnames(bothExtraction_filt_counts_gat_subSelection)[1:2] = c("hap1", "hap2")
#    bothExtraction_filt_counts_gat_subSelection_filt = bothExtraction_filt_counts_gat_subSelection %>%
#      filter(hap1 != "notTypeable",
#             hap2 != "notTypeable") %>%
#      group_by(hap1, hap2) %>%
#      summarise(n = sum(n))
#    bothExtraction_filt_counts_hapLinkCounts = bind_rows(
#      bothExtraction_filt_counts_hapLinkCounts,
#      bothExtraction_filt_counts_gat_subSelection_filt
#    )
#   }
# }

for(col1 in 1:3) {
  col2 = col1 + 1
   bothExtraction_filt_counts_gat_subSelection = bothExtraction_filt_counts %>%
     group_by() %>%
     select(col1, col2, n)
   colnames(bothExtraction_filt_counts_gat_subSelection)[1:2] = c("hap1", "hap2")
   bothExtraction_filt_counts_gat_subSelection_filt = bothExtraction_filt_counts_gat_subSelection %>%
     filter(hap1 != "notTypeable",
            hap2 != "notTypeable") %>%
     group_by(hap1, hap2) %>%
     summarise(n = sum(n))
   bothExtraction_filt_counts_hapLinkCounts = bind_rows(
     bothExtraction_filt_counts_hapLinkCounts,
     bothExtraction_filt_counts_gat_subSelection_filt
   )
}

bothExtraction_filt_chromosomeLinkageInfo =  bothExtraction_filt %>%
   select(`#chrom`, `Pf3D7_11_v3-1919677-1919761-for__var-0`) %>%
   filter(`Pf3D7_11_v3-1919677-1919761-for__var-0` != "notTypeable") %>%
  group_by(`#chrom`, `Pf3D7_11_v3-1919677-1919761-for__var-0`) %>%
  count()

bothExtraction_filt_chromosomeLinkageInfo_addToHapCounts = bothExtraction_filt_chromosomeLinkageInfo %>%
  rename(haplotype = `#chrom` ) %>%
  group_by(haplotype) %>%
  summarise(n = sum(n))

bothExtraction_filt_counts_gat_hapCounts = bothExtraction_filt_counts_gat_hapCounts %>%
  bind_rows(bothExtraction_filt_chromosomeLinkageInfo_addToHapCounts)


#zero based position source/target nodes
bothExtraction_filt_counts_hapLinkCounts = bothExtraction_filt_counts_hapLinkCounts %>%
  mutate(source = match(hap1, bothExtraction_filt_counts_gat_hapCounts$haplotype) -1) %>%
  mutate(target = match(hap2, bothExtraction_filt_counts_gat_hapCounts$haplotype) -1)

bothExtraction_filt_chromosomeLinkageInfo = bothExtraction_filt_chromosomeLinkageInfo  %>%
  rename(hap1 = `#chrom`,
         hap2 = `Pf3D7_11_v3-1919677-1919761-for__var-0`) %>%
  mutate(source = match(hap1, bothExtraction_filt_counts_gat_hapCounts$haplotype) -1) %>%
  mutate(target = match(hap2, bothExtraction_filt_counts_gat_hapCounts$haplotype) -1)
bothExtraction_filt_counts_hapLinkCounts = bothExtraction_filt_counts_hapLinkCounts %>%
  bind_rows(bothExtraction_filt_chromosomeLinkageInfo)
# adding in chromosome linkage to front


bothExtraction_filt_counts_hapLinkCounts = as.data.frame(bothExtraction_filt_counts_hapLinkCounts)
bothExtraction_filt_counts_gat_hapCounts = as.data.frame(bothExtraction_filt_counts_gat_hapCounts)

# Thus we can plot it
p <- sankeyNetwork(
  Links = bothExtraction_filt_counts_hapLinkCounts,
  Nodes = bothExtraction_filt_counts_gat_hapCounts,
  Source = "source",
  Target = "target",
  Value = "n",
  NodeID = "haplotype",
  units = "reads",
  fontSize = 12,
  nodeWidth = 30
)

There is some cross linkage between the variants but this is low level and could either represent typing error or even possibly low level of continued recombination between these regions.

Code

bothExtraction_filt_mod_sel = bothExtraction_filt_mod %>%
  select(starts_with("Pf3D7"), `#chrom`, rowid) %>%
  gather(region, hap, 1:4) %>%
  mutate(hapVar = gsub(".*\\.", "", hap)) %>%
  filter(hapVar != "notTypeable") %>%
  group_by(`#chrom`, rowid,hapVar) %>%
  count() %>%
  group_by(`#chrom`, rowid) %>%
  filter(n == max(n))

bothExtraction_filt_mod_sel_counts = bothExtraction_filt_mod_sel%>%
  group_by(`#chrom`, rowid) %>%
  mutate(varCounts = n()) %>%
  mutate(typed = case_when(varCounts > 1 ~ "indeterminate",
                           hapVar == 1 ~ "chr11",
                           hapVar == 0 ~ "chr13"))

bothExtraction_filt_mod_sel_counts_type = bothExtraction_filt_mod_sel_counts %>%
  select(`#chrom`, rowid, typed) %>%
  group_by() %>%
  unique()

bothExtraction_filt_mod_typed = bothExtraction_filt_mod %>%
  left_join(bothExtraction_filt_mod_sel_counts_type)


illuminaExtraction_filt_mod_sel = illuminaExtraction_filt_mod %>%
  select(starts_with("Pf3D7"), `#chrom`, rowid) %>%
  gather(region, hap, 1:3) %>%
  mutate(hapVar = gsub(".*\\.", "", hap)) %>%
  filter(hapVar != "notTypeable") %>%
  group_by(`#chrom`, rowid,hapVar) %>%
  count() %>%
  group_by(`#chrom`, rowid) %>%
  filter(n == max(n))

illuminaExtraction_filt_mod_sel_counts = illuminaExtraction_filt_mod_sel%>%
  group_by(`#chrom`, rowid) %>%
  mutate(varCounts = n()) %>%
  mutate(typed = case_when(varCounts > 1 ~ "indeterminate",
                           hapVar == 1 ~ "chr11",
                           hapVar == 0 ~ "chr13"))

illuminaExtraction_filt_mod_sel_counts_type = illuminaExtraction_filt_mod_sel_counts %>%
  select(`#chrom`, rowid, typed) %>%
  group_by() %>%
  unique()

illuminaExtraction_filt_mod_typed = illuminaExtraction_filt_mod %>%
  left_join(illuminaExtraction_filt_mod_sel_counts_type)

Plotting by strongest chromosome association

Colored by the chromosome associated variation (chr11 vs chr13). If a read has multiple loci and there is a tie between the different chromosomes then it is colored indeterminate.

Code

chrVarPlot = ggplot() +
  geom_rect(aes(xmin = start, xmax = end,
                ymin = rowid,
                ymax = rowid + 1,
                fill = typed),
            color = "black",
            data = bothExtraction_filt_mod_typed %>%
              mutate(typed = factor(typed, levels = c("indeterminate", "chr13", "chr11"))))  +
  scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"),
    name= "Associated Chromosome\nVariation",
    guide = guide_legend(
      ncol = 1
    ) ) +
  ggnewscale::new_scale_fill() +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0,
                fill = "Duplicated Region"),
            color = "black",
            #fill = "#2271B2",
            data = homologousRegionWithPureHybrid) +
  geom_rect(aes(xmin = X2, xmax = X3,
                ymin = -10,
                ymax = 0,
                fill = "SD01 Variant Sites"),
            #color = "black",
            #fill = "#F748A5",
            data = multiRegionPureHybrid) +
  scale_fill_manual("Genomic", values = c("Duplicated Region" = "#2271B2", "SD01 Variant Sites" = "#F748A5")) +
  guides(fill = guide_legend(ncol = 1)) +
  sofonias_theme +
  theme(axis.text.x = element_text(size=12, angle = -45, vjust = 0.5, hjust = 0)) +
  facet_wrap(~X1, scales = "free")

print(chrVarPlot)

Code

pdf("SD01_variation_associated_reads_plot.pdf", width = 8, height = 6, useDingbats = F)
print(chrVarPlot)
dev.off()

quartz_off_screen
                2

Code

# pacbio and nanopore
bothExtraction_filt_mod_typedchr11 = bothExtraction_filt_mod_typed %>%
  filter(typed == "chr11")
write_tsv(bothExtraction_filt_mod_typedchr11, "nanoPacbio_typed11.tab.txt")

bothExtraction_filt_mod_typedchr13 = bothExtraction_filt_mod_typed %>%
  filter(typed == "chr13")
write_tsv(bothExtraction_filt_mod_typedchr13, "nanoPacbio_typed13.tab.txt")

bothExtraction_filt_mod_typedchr13 = bothExtraction_filt_mod_typed %>%
  filter(typed == "chr13")
write_tsv(bothExtraction_filt_mod_typedchr13, "nanoPacbio_typed13.tab.txt")



# illumina
illuminaExtraction_filt_mod_typedchr11 = illuminaExtraction_filt_mod_typed %>%
  filter(typed == "chr11")
write_tsv(illuminaExtraction_filt_mod_typedchr11, "illumina_typed11.tab.txt")

illuminaExtraction_filt_mod_typedchr13 = illuminaExtraction_filt_mod_typed %>%
  filter(typed == "chr13")
write_tsv(illuminaExtraction_filt_mod_typedchr13, "illumina_typed13.tab.txt")

illuminaExtraction_filt_mod_typedchr13 = illuminaExtraction_filt_mod_typed %>%
  filter(typed == "chr13")
write_tsv(illuminaExtraction_filt_mod_typedchr13, "illumina_typed13.tab.txt")

Code

cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/extractingFromRawFastqs

elucidator printCol --file nanoPacbio_typed11.tab.txt --delim tab --header --columnName oldName --unique --sort --out chr11_names.txt --overWrite
elucidator printCol --file nanoPacbio_typed13.tab.txt --delim tab --header --columnName oldName --unique --sort --out chr13_names.txt --overWrite

nohup elucidator extractByName --fastqgz ../pacbioReads/combined.fastq.gz --names chr11_names.txt --out pacbio_chr11_combined.fastq.gz --overWrite --trimAtWhiteSpace  &
nohup elucidator extractByName --fastqgz ../pacbioReads/combined.fastq.gz --names chr13_names.txt --out pacbio_chr13_combined.fastq.gz --overWrite --trimAtWhiteSpace  &
nohup elucidator extractByName --fastqgz ../pacbioReads/combined.fastq.gz --names chr11_names.txt --out pacbio_allButChr11_combined.fastq.gz --overWrite --trimAtWhiteSpace --excluding &
nohup elucidator extractByName --fastqgz ../pacbioReads/combined.fastq.gz --names chr13_names.txt --out pacbio_allButChr13_combined.fastq.gz --overWrite --trimAtWhiteSpace --excluding &


nohup elucidator extractByName --fastqgz ../rawFastq/PfSD01PermethION.fastq.gz --names chr11_names.txt --out nano_chr11_PfSD01PermethION.fastq.gz --overWrite --trimAtWhiteSpace  &
nohup elucidator extractByName --fastqgz ../rawFastq/PfSD01PermethION.fastq.gz --names chr13_names.txt --out nano_chr13_PfSD01PermethION.fastq.gz --overWrite --trimAtWhiteSpace  &
nohup elucidator extractByName --fastqgz ../rawFastq/PfSD01PermethION.fastq.gz --names chr11_names.txt --out nano_allButChr11_PfSD01PermethION.fastq.gz --overWrite --trimAtWhiteSpace --excluding &
nohup elucidator extractByName --fastqgz ../rawFastq/PfSD01PermethION.fastq.gz --names chr13_names.txt --out nano_allButChr13_PfSD01PermethION.fastq.gz --overWrite --trimAtWhiteSpace --excluding &

cat nano_allButChr11_PfSD01PermethION.fastq.gz pacbio_chr13_combined.fastq.gz > ../combinedRawFastqs/PfSD01PermethION_withPacbio_forchr13.fastq.gz
cat nano_allButChr13_PfSD01PermethION.fastq.gz pacbio_chr11_combined.fastq.gz > ../combinedRawFastqs/PfSD01PermethION_withPacbio_forchr11.fastq.gz

--- title: "SD01 specific spanning reads analysis" --- ```{r setup, echo=FALSE, message=FALSE} source("../../../common.R") ``` Getting specific spanning reads for the variability in the shared region for SD01. The read and overall sample quality of SD01 is poor (fragile DNA) so assembly and long read depth is hard to achieve. This plus the fact that basically from this shared region to the end chromosomes 11 and hybrid 13-11 are perfectly copied (a region close to 200kb) it's hard to assembly at baseline. For this reason to help support the claim that the hybrid genome 13 exist we can link the same amount of variation seen within the shared region between 11 and 13 to try to link variation within this region to reads that span chromosome 13 into this region. If variation specific to only to chromosome 13 reads are also contained within reads that then span from within the shared region into chromosome 11 sequence (either on the hybrid 13-11 or into 11 since from the shared region to the end of the chromosome this sequence is identical within the 3D7 hybrid genome so reads should be able to multi-map to both these regions). These regions below have variation within the strain SD01 within the 15.3kb shared region between 11 and 13. ```{r} finalHrpSubwindows_regions_withSD01MultiInShared = readr::read_tsv("../../../../Windows_Surrounding_HRP2_3_deletions/windowAnalysis/finalHrpSubwindows_regions_withSD01MultiInShared.bed", col_names = F) create_dt(finalHrpSubwindows_regions_withSD01MultiInShared) ``` Determine the locations within hybrid genome in order to pull the long reads from the alignments to the hybrid (core 3D7 genome plus hybrid chromosomes chr11-chr13, chr13-chr11) genome ```{bash, eval = F} cd ../../../../Windows_Surrounding_HRP2_3_deletions/windowAnalysis/ elucidator getFastaWithBed --twoBit /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.2bit --overWrite --bed finalHrpSubwindows_regions_withSD01MultiInShared.bed --out finalHrpSubwindows_regions_withSD01MultiInShared.fasta elucidator determineRegionLastz --identity 100 --coverage 100 --fasta finalHrpSubwindows_regions_withSD01MultiInShared.fasta --individual --genome /tank/data/genomes/plasmodium/genomes/pf_hybrid/genomes/Pf3D7_plus_11-13_13-11_hybrid.fasta | sort | uniq > raw_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed # have to do this cause LASTZ bugs out and doesn't do the matching of Pf3D7_11_v3 1924680 1924740 Pf3D7_11_v3-1924664-1924740-for__var-0 60 + for whatever goodness forsaken reason cut -f1-6 finalHrpSubwindows_regions_withSD01MultiInShared.bed raw_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed | sort | uniq > finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed elucidator getOverlappingBedRegions --bed finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --intersectWithBed ../../sharedBetween11_and_13/investigatingChrom11Chrom13/shared_11_13_region_onPureHybrid.bed | cut -f1-6 > finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed ``` Get the nanopore/pacbio reads that intersect this region ```{bash, eval = F} cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore elucidator bamToBed --bam hybridAlnsMinimap2/PfSD01PermethION.sorted.bam | elucidator getOverlappingBedRegions --bed STDIN --intersectWithBed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --overWrite --out PfSD01PermethION_intersecting_withSD01MultiInShared.bed cd /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies elucidator bamToBed --bam hybridAlnsMinimap2/PfSD01.sorted.bam | elucidator getOverlappingBedRegions --bed STDIN --intersectWithBed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --overWrite --out PfSD01Pacbio_intersecting_withSD01MultiInShared.bed ``` ```{r} homologousRegionWithHybrid = readr::read_tsv("../../../../sharedBetween11_and_13/investigatingChrom11Chrom13/combined_shared_11_13_region.bed", col_names = F) multiRegion = readr::read_tsv("../../../../Windows_Surrounding_HRP2_3_deletions/windowAnalysis/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed", col_names = F) ``` ## Plotting intersected long reads Shared region is shown in red, the regions within wich SD01 has variation are shown in blue ```{r} PfSD01PermethION = readr::read_tsv("PfSD01PermethION_intersecting_withSD01MultiInShared.bed", col_names = F) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() PfSD01Pacbio = readr::read_tsv("PfSD01Pacbio_intersecting_withSD01MultiInShared.bed", col_names = F) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() PfSD01PermethION_filt = PfSD01PermethION %>% left_join( homologousRegionWithHybrid %>% rename(sharedStart = X2, sharedStop = X3) %>% select(X1, starts_with("shared")) ) %>% filter((X2 < sharedStart & X3 > sharedStart) | (X2 < sharedStop & X3 > sharedStop)) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() PfSD01Pacbio_filt = PfSD01Pacbio %>% left_join( homologousRegionWithHybrid %>% rename(sharedStart = X2, sharedStop = X3) %>% select(X1, starts_with("shared")) ) %>% filter((X2 < sharedStart & X3 > sharedStart) | (X2 < sharedStop & X3 > sharedStop)) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() ``` ### Nanopore ```{r} #| fig-column: screen-inset-shaded ggplot() + geom_rect(aes(xmin = X2, xmax = X3, ymin = rowid, ymax = rowid + 1), data = PfSD01PermethION_filt) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegion) + sofonias_theme + facet_wrap(~X1, scales = "free") ``` ### Pacbio ```{r} #| fig-column: screen-inset-shaded ggplot() + geom_rect(aes(xmin = X2, xmax = X3, ymin = rowid, ymax = rowid + 1), data = PfSD01Pacbio_filt) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegion)+ sofonias_theme + facet_wrap(~X1, scales = "free") ``` # Extracting and typing reads ## Extracting long reads ```{bash, eval = F} cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore cd PfSD01_withSD01MultiInShared_extractions elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/hybridAlnsMinimap2/PfSD01PermethION.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --trimToRegion --overWriteDir --dout PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions --rename elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies/hybridAlnsMinimap2/PfSD01.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid.bed --trimToRegion --overWriteDir --dout PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions --rename ``` Add in illumina reads to help with error correcting ```{bash, eval = F} elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/data/plasmodium/falciparum/pfdata/bams/PfSD01.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared.bed --trimToRegion --overWriteDir --dout PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions --rename mkdir PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions for x in PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix illumina_; done; for x in PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix nano_; done; for x in PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix pacbio_; done; ``` Concatenate reads and add the extraction info ```{bash, eval = F} for x in PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/prepended_Pf3D7*gz; do cat ${x} PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/$(basename ${x}) PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/$(basename ${x}) > PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/$(basename ${x} | sed 's/prepended_//g'); done; cat PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/prepended_Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/prepended_Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz > PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz rsync -raPh PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/illumina_extraction_nameKey.tab.txt rsync -raPh PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/nano_extraction_nameKey.tab.txt rsync -raPh PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inHybrid_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions/pacbio_extraction_nameKey.tab.txt ``` Cluster the reads using clustering meant for error prone long reads `elucidatorlab kmerClusteringRate` to help type the reads. ```{bash, eval = F} cd PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_regions for x in Pf3D7_11_v3-19*gz; do elucidatorlab kmerClusteringRate --qualThres 7,5 --cutOff 0.1 --idCutOff 0.80 --numThreads 15 --lqMismatches 2 --oneBaseIndel 5 --twoBaseIndel 2 --map --recalcConsensus --checkChimeras --overWriteDir --writeInitialClusters --sizeCutOff 10 --fastq ${x} --dout clustering_${x%%.fastq.gz} --postCollapseForceOneComp; done; elucidator rBind --contains clusterNames.tab.txt --recursive --delim tab --header --overWrite --out allClusterNames.tab.txt ``` ## Renaming Type the reads based on their clustering ```{r} allClusterNames = readr::read_tsv("allClusterNames.tab.txt") allClusterNames_filt = allClusterNames %>% filter(!grepl("_t0\\.[0-9]*", readName)) %>% filter("Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.2_t12" != clusterName) %>% mutate(region = gsub("\\.fastq.*", "", clusterName)) %>% mutate(clusterID = gsub(".*\\.fastq\\.", "", clusterName)) %>% mutate(clusterID = gsub("_t[0-9\\.]*", "", clusterID)) %>% mutate(regionID = paste0(region, ".", clusterID)) illuminaExtraction = readr::read_tsv("illumina_extraction_nameKey.tab.txt") %>% mutate(newName = paste0("illumina_", newName)) pacbioExtraction = readr::read_tsv("pacbio_extraction_nameKey.tab.txt") %>% mutate(newName = paste0("pacbio_", newName)) nanoExtraction = readr::read_tsv("nano_extraction_nameKey.tab.txt") %>% mutate(newName = paste0("nano_", newName)) bothExtraction = bind_rows(pacbioExtraction, nanoExtraction) bothExtraction_filt = bothExtraction %>% filter(newName %in% allClusterNames_filt$readName) %>% mutate(genomeID = paste0(`#chrom`, "-", start, "-", end)) %>% left_join(allClusterNames_filt %>% rename(newName = readName) %>% select(newName, region, regionID)) %>% select(-newName) %>% spread(region, regionID) %>% replace_na( list( `Pf3D7_11_v3-1919677-1919761-for__var-0` = "notTypeable", `Pf3D7_11_v3-1921054-1921153-for__var-0` = "notTypeable", `Pf3D7_11_v3-1924664-1924740-for__var-0` = "notTypeable", `Pf3D7_11_v3-1927700-1928008-for__var-0` = "notTypeable") ) illuminaExtraction_filt = illuminaExtraction %>% filter(newName %in% allClusterNames_filt$readName) %>% mutate(genomeID = paste0(`#chrom`, "-", start, "-", end)) %>% left_join(allClusterNames_filt %>% rename(newName = readName) %>% select(newName, region, regionID)) %>% select(-newName) %>% spread(region, regionID) %>% replace_na( list( `Pf3D7_11_v3-1919677-1919761-for__var-0` = "notTypeable", `Pf3D7_11_v3-1921054-1921153-for__var-0` = "notTypeable", `Pf3D7_11_v3-1924664-1924740-for__var-0` = "notTypeable", `Pf3D7_11_v3-1927700-1928008-for__var-0` = "notTypeable") ) bothExtraction_filt_counts = bothExtraction_filt %>% group_by(`Pf3D7_11_v3-1919677-1919761-for__var-0`, `Pf3D7_11_v3-1921054-1921153-for__var-0`, `Pf3D7_11_v3-1924664-1924740-for__var-0`, `Pf3D7_11_v3-1927700-1928008-for__var-0`) %>% count() create_dt(bothExtraction_filt_counts) ``` ## Typed intersected reads Typing the reads by the variants within each of the 4 regions, the current region typing the read by is colored pink in the shared region below. If a read didn't cover the region or there was too much error to confidently type it then it's colored as "untypeable". ```{r} #| fig-column: screen-inset-shaded #| fig-width: 30 #| fig-height: 15 outBound = 5000 bothExtraction_filt_mod = bothExtraction_filt %>% group_by(`#chrom`) %>% arrange(`#chrom`, start, end )%>% mutate(rowid = row_number()) %>% mutate(X1 = `#chrom`) %>% left_join( homologousRegionWithHybrid %>% rename(sharedStart = X2, sharedStop = X3) %>% select(X1, starts_with("shared")) ) %>% filter((start < sharedStart & end > sharedStart) | (start < sharedStop & end > sharedStop)) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() %>% mutate(startDiff = sharedStart - start, endDiff = sharedStop - end) %>% mutate(start = ifelse(start < sharedStart - outBound, sharedStart - outBound, start), end = ifelse(end > sharedStop + outBound, sharedStop + outBound, end)) illuminaExtraction_filt_mod = illuminaExtraction_filt %>% group_by(`#chrom`) %>% arrange(`#chrom`, start, end )%>% mutate(rowid = row_number()) %>% mutate(X1 = `#chrom`) %>% left_join( homologousRegionWithHybrid %>% rename(sharedStart = X2, sharedStop = X3) %>% select(X1, starts_with("shared")) ) ``` ```{r} #| fig-column: screen-inset-shaded #| fig-width: 30 #| fig-height: 15 ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = `Pf3D7_11_v3-1919677-1919761-for__var-0`), data = bothExtraction_filt_mod) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegion) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F0E442", data = multiRegion %>% filter(X4 == "Pf3D7_11_v3-1919677-1919761-for__var-0")) + sofonias_theme + facet_wrap(~X1, scales = "free") + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), guide = guide_legend( ncol = 1 ) ) + labs(title = "Pf3D7_11_v3-1919677-1919761-for__var-0") ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = `Pf3D7_11_v3-1921054-1921153-for__var-0`), data = bothExtraction_filt_mod) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegion) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F0E442", data = multiRegion %>% filter(X4 == "Pf3D7_11_v3-1921054-1921153-for__var-0")) + sofonias_theme + facet_wrap(~X1, scales = "free") + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), guide = guide_legend( ncol = 1 ) ) + labs(title = "Pf3D7_11_v3-1921054-1921153-for__var-0") ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = `Pf3D7_11_v3-1924664-1924740-for__var-0`), data = bothExtraction_filt_mod) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegion)+ geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F0E442", data = multiRegion %>% filter(X4 == "Pf3D7_11_v3-1924664-1924740-for__var-0")) + sofonias_theme + facet_wrap(~X1, scales = "free") + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), guide = guide_legend( ncol = 1 ) ) + labs(title = "Pf3D7_11_v3-1924664-1924740-for__var-0") ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = `Pf3D7_11_v3-1927700-1928008-for__var-0`), data = bothExtraction_filt_mod) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegion)+ geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F0E442", data = multiRegion %>% filter(X4 == "Pf3D7_11_v3-1927700-1928008-for__var-0")) + sofonias_theme + facet_wrap(~X1, scales = "free") + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), guide = guide_legend( ncol = 1 ) ) + labs(title = "Pf3D7_11_v3-1927700-1928008-for__var-0") ``` # Processing on pure hybrid The same exact work flow as above but except hybrid genome was modified to include only the expected regular chromosome 11 and the hybrid 13-11 (which is the expected hybrid genome for SD01). This way it is easier to deal with less multi mappers when so much genome was duplicated to map to. ```{bash, eval = F} cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore mkdir purehybridAlnsMinimap2 minimap2 -x map-ont -t 40 -a /tank/data/genomes/plasmodium/genomes/pf_hybrid/genomes/Pf3D7_pure_11-13_13-11_hybrid.fasta rawFastq/PfSD01PermethION.fastq.gz | samtools sort --threads 40 -o purehybridAlnsMinimap2/PfSD01PermethION.sorted.bam samtools index purehybridAlnsMinimap2/PfSD01PermethION.sorted.bam cd /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies mkdir purehybridAlnsMinimap2 minimap2 -x map-hifi -t 48 -a /tank/data/genomes/plasmodium/genomes/pf_hybrid/genomes/Pf3D7_pure_11-13_13-11_hybrid.fasta rawFastq/ERR1036246.fastq.gz | samtools sort --threads 48 -o purehybridAlnsMinimap2/PfSD01.sorted.bam && samtools index purehybridAlnsMinimap2/PfSD01.sorted.bam ``` ```{bash, eval = F} cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore elucidator bamToBed --bam purehybridAlnsMinimap2/PfSD01PermethION.sorted.bam | elucidator getOverlappingBedRegions --bed STDIN --intersectWithBed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed --overWrite --out PfSD01PermethION_intersecting_withSD01MultiInShared_pureHybrid.bed cd /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies elucidator bamToBed --bam purehybridAlnsMinimap2/PfSD01.sorted.bam | elucidator getOverlappingBedRegions --bed STDIN --intersectWithBed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed --overWrite --out PfSD01Pacbio_intersecting_withSD01MultiInShared_pureHybrid.bed ``` ```{r} homologousRegionWithPureHybrid = readr::read_tsv("../../../../sharedBetween11_and_13/investigatingChrom11Chrom13/shared_11_13_region_onPureHybrid.bed", col_names = F, skip = 1) multiRegionPureHybrid = readr::read_tsv("../../../../Windows_Surrounding_HRP2_3_deletions/windowAnalysis/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed", col_names = F) ``` ```{r} PfSD01PermethION = readr::read_tsv("againstPureHybrid/PfSD01PermethION_intersecting_withSD01MultiInShared_pureHybrid.bed", col_names = F) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() PfSD01Pacbio = readr::read_tsv("againstPureHybrid/PfSD01Pacbio_intersecting_withSD01MultiInShared_pureHybrid.bed", col_names = F) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() PfSD01PermethION_filt = PfSD01PermethION %>% left_join( homologousRegionWithHybrid %>% rename(sharedStart = X2, sharedStop = X3) %>% select(X1, starts_with("shared")) ) %>% filter((X2 < sharedStart & X3 > sharedStart) | (X2 < sharedStop & X3 > sharedStop)) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() PfSD01Pacbio_filt = PfSD01Pacbio %>% left_join( homologousRegionWithHybrid %>% rename(sharedStart = X2, sharedStop = X3) %>% select(X1, starts_with("shared")) ) %>% filter((X2 < sharedStart & X3 > sharedStart) | (X2 < sharedStop & X3 > sharedStop)) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() ``` ### Nanopore ```{r} #| fig-column: screen-inset-shaded ggplot() + geom_rect(aes(xmin = X2, xmax = X3, ymin = rowid, ymax = rowid + 1), data = PfSD01PermethION_filt) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegionPureHybrid) + sofonias_theme + facet_wrap(~X1, scales = "free") ``` ### Pacbio ```{r} #| fig-column: screen-inset-shaded ggplot() + geom_rect(aes(xmin = X2, xmax = X3, ymin = rowid, ymax = rowid + 1), data = PfSD01Pacbio_filt) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegionPureHybrid)+ sofonias_theme + facet_wrap(~X1, scales = "free") ``` ## Extracting and typing reads ```{bash, eval = F} cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore mkdir PfSD01_withSD01MultiInShared_extractions_pureHybrid cd PfSD01_withSD01MultiInShared_extractions_pureHybrid elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/purehybridAlnsMinimap2/PfSD01PermethION.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed --trimToRegion --overWriteDir --dout PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions --rename elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/data/plasmodium/falciparum/pfpubdata/malariagen_pacbio_assemblies/purehybridAlnsMinimap2/PfSD01.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid.bed --trimToRegion --overWriteDir --dout PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions --rename elucidator BamGetSpanningReadsForRegionLongReads --bam /tank/data/plasmodium/falciparum/pfdata/bams/PfSD01.sorted.bam --bed /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/finalHrpSubwindows_regions_withSD01MultiInShared.bed --trimToRegion --overWriteDir --dout PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions --rename mkdir PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions for x in PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix illumina_; done; for x in PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix nano_; done; for x in PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/Pf*gz; do elucidator prependNames --fastqgz ${x} --overWrite --prefix pacbio_; done; for x in PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/prepended_Pf3D7*gz; do cat ${x} PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/$(basename ${x}) PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/$(basename ${x}) > PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/$(basename ${x} | sed 's/prepended_//g'); done; cat PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/prepended_Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/prepended_Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz > PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.gz rsync -raPh PfSD01_illumina_finalHrpSubwindows_regions_withSD01MultiInShared_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/illumina_extraction_nameKey.tab.txt rsync -raPh PfSD01_nano_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/nano_extraction_nameKey.tab.txt rsync -raPh PfSD01_pacbio_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/nameKey.tab.txt PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions/pacbio_extraction_nameKey.tab.txt cd PfSD01_combined_finalHrpSubwindows_regions_withSD01MultiInShared_inPureHybrid_regions for x in Pf3D7_11_v3-19*gz; do elucidatorlab kmerClusteringRate --qualThres 7,5 --cutOff 0.1 --idCutOff 0.80 --numThreads 15 --lqMismatches 2 --oneBaseIndel 5 --twoBaseIndel 2 --map --recalcConsensus --checkChimeras --overWriteDir --writeInitialClusters --sizeCutOff 10 --fastq ${x} --dout clustering_${x%%.fastq.gz} --postCollapseForceOneComp; done; elucidator rBind --contains clusterNames.tab.txt --recursive --delim tab --header --overWrite --out allClusterNames.tab.txt ``` ## Typing ```{r} allClusterNames = readr::read_tsv("againstPureHybrid/allClusterNames.tab.txt") allClusterNames_filt = allClusterNames %>% filter(!grepl("_t0\\.[0-9]*", readName)) %>% filter("Pf3D7_11_v3-1927700-1928008-for__var-0.fastq.2_t12" != clusterName) %>% mutate(region = gsub("\\.fastq.*", "", clusterName)) %>% mutate(clusterID = gsub(".*\\.fastq\\.", "", clusterName)) %>% mutate(clusterID = gsub("_t[0-9\\.]*", "", clusterID)) %>% mutate(regionID = paste0(region, ".", clusterID)) illuminaExtraction = readr::read_tsv("againstPureHybrid/illumina_extraction_nameKey.tab.txt") %>% mutate(newName = paste0("illumina_", newName)) pacbioExtraction = readr::read_tsv("againstPureHybrid/pacbio_extraction_nameKey.tab.txt") %>% mutate(newName = paste0("pacbio_", newName)) nanoExtraction = readr::read_tsv("againstPureHybrid/nano_extraction_nameKey.tab.txt") %>% mutate(newName = paste0("nano_", newName)) bothExtraction = bind_rows(pacbioExtraction, nanoExtraction) bothExtraction_filt = bothExtraction %>% filter(newName %in% allClusterNames_filt$readName) %>% mutate(genomeID = paste0(`#chrom`, "-", start, "-", end)) %>% left_join(allClusterNames_filt %>% rename(newName = readName) %>% select(newName, region, regionID)) %>% select(-newName) %>% spread(region, regionID) %>% replace_na( list( `Pf3D7_11_v3-1919677-1919761-for__var-0` = "notTypeable", `Pf3D7_11_v3-1921054-1921153-for__var-0` = "notTypeable", `Pf3D7_11_v3-1924664-1924740-for__var-0` = "notTypeable", `Pf3D7_11_v3-1927700-1928008-for__var-0` = "notTypeable") ) illuminaExtraction_filt = illuminaExtraction %>% filter(newName %in% allClusterNames_filt$readName) %>% mutate(genomeID = paste0(`#chrom`, "-", start, "-", end)) %>% left_join(allClusterNames_filt %>% rename(newName = readName) %>% select(newName, region, regionID)) %>% select(-newName) %>% spread(region, regionID) %>% replace_na( list( `Pf3D7_11_v3-1919677-1919761-for__var-0` = "notTypeable", `Pf3D7_11_v3-1921054-1921153-for__var-0` = "notTypeable", `Pf3D7_11_v3-1924664-1924740-for__var-0` = "notTypeable", `Pf3D7_11_v3-1927700-1928008-for__var-0` = "notTypeable") ) bothExtraction_filt_counts = bothExtraction_filt %>% group_by(`Pf3D7_11_v3-1919677-1919761-for__var-0`, `Pf3D7_11_v3-1921054-1921153-for__var-0`, `Pf3D7_11_v3-1924664-1924740-for__var-0`, `Pf3D7_11_v3-1927700-1928008-for__var-0`) %>% count() create_dt(bothExtraction_filt_counts) ``` ```{r} #| fig-column: screen-inset-shaded #| fig-width: 30 #| fig-height: 15 outBound = 5000 bothExtraction_filt_mod = bothExtraction_filt %>% group_by(`#chrom`) %>% arrange(`#chrom`, start, end )%>% mutate(rowid = row_number()) %>% mutate(X1 = `#chrom`) %>% left_join( homologousRegionWithPureHybrid %>% rename(sharedStart = X2, sharedStop = X3) %>% select(X1, starts_with("shared")) ) %>% filter((start < sharedStart & end > sharedStart) | (start < sharedStop & end > sharedStop)) %>% group_by(X1) %>% mutate(rowid = row_number()) %>% group_by() %>% mutate(startDiff = sharedStart - start, endDiff = sharedStop - end) %>% mutate(start = ifelse(start < sharedStart - outBound, sharedStart - outBound, start), end = ifelse(end > sharedStop + outBound, sharedStop + outBound, end)) illuminaExtraction_filt_mod = illuminaExtraction_filt %>% group_by(`#chrom`) %>% arrange(`#chrom`, start, end )%>% mutate(rowid = row_number()) %>% mutate(X1 = `#chrom`) %>% left_join( homologousRegionWithPureHybrid %>% rename(sharedStart = X2, sharedStop = X3) %>% select(X1, starts_with("shared")) ) ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = `Pf3D7_11_v3-1919677-1919761-for__var-0`), data = bothExtraction_filt_mod) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegionPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F0E442", data = multiRegionPureHybrid %>% filter(X4 == "Pf3D7_11_v3-1919677-1919761-for__var-0")) + sofonias_theme + facet_wrap(~X1, scales = "free") + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), guide = guide_legend( ncol = 1 ) ) + labs(title = "Pf3D7_11_v3-1919677-1919761-for__var-0") ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = `Pf3D7_11_v3-1921054-1921153-for__var-0`), data = bothExtraction_filt_mod) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegionPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F0E442", data = multiRegionPureHybrid %>% filter(X4 == "Pf3D7_11_v3-1921054-1921153-for__var-0")) + sofonias_theme + facet_wrap(~X1, scales = "free") + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), guide = guide_legend( ncol = 1 ) ) + labs(title = "Pf3D7_11_v3-1921054-1921153-for__var-0") ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = `Pf3D7_11_v3-1924664-1924740-for__var-0`), data = bothExtraction_filt_mod) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegionPureHybrid)+ geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F0E442", data = multiRegionPureHybrid %>% filter(X4 == "Pf3D7_11_v3-1924664-1924740-for__var-0")) + sofonias_theme + facet_wrap(~X1, scales = "free") + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), guide = guide_legend( ncol = 1 ) ) + labs(title = "Pf3D7_11_v3-1924664-1924740-for__var-0") ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = `Pf3D7_11_v3-1927700-1928008-for__var-0`), data = bothExtraction_filt_mod) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#2271B2", data = homologousRegionWithPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F748A5", data = multiRegionPureHybrid)+ geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0), fill = "#F0E442", data = multiRegionPureHybrid %>% filter(X4 == "Pf3D7_11_v3-1927700-1928008-for__var-0")) + sofonias_theme + facet_wrap(~X1, scales = "free") + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), guide = guide_legend( ncol = 1 ) ) + labs(title = "Pf3D7_11_v3-1927700-1928008-for__var-0") ``` ## Linkage between variants Looking at the linkage between variants by linking each variant within the long reads to each subsequent variant and then linkng the chromosome to the first variant. It appears that all the variants 0.1 are correlated to chromosome 11 and all variants 0.0 are correlated to chromosome 13 ```{r} # Load package library(networkD3) bothExtraction_filt_counts_gat = bothExtraction_filt_counts %>% gather(region, haplotype, 1:4) bothExtraction_filt_counts_gat_hapCounts = bothExtraction_filt_counts_gat %>% filter(haplotype != "notTypeable") %>% group_by(haplotype) %>% summarise(n = sum(n)) %>% mutate(haplotypeCoded = row_number()) bothExtraction_filt_counts_hapLinkCounts = tibble() # for(col1 in 1:3) { # for (col2 in (col1 + 1):4) { # bothExtraction_filt_counts_gat_subSelection = bothExtraction_filt_counts %>% # group_by() %>% # select(col1, col2, n) # colnames(bothExtraction_filt_counts_gat_subSelection)[1:2] = c("hap1", "hap2") # bothExtraction_filt_counts_gat_subSelection_filt = bothExtraction_filt_counts_gat_subSelection %>% # filter(hap1 != "notTypeable", # hap2 != "notTypeable") %>% # group_by(hap1, hap2) %>% # summarise(n = sum(n)) # bothExtraction_filt_counts_hapLinkCounts = bind_rows( # bothExtraction_filt_counts_hapLinkCounts, # bothExtraction_filt_counts_gat_subSelection_filt # ) # } # } for(col1 in 1:3) { col2 = col1 + 1 bothExtraction_filt_counts_gat_subSelection = bothExtraction_filt_counts %>% group_by() %>% select(col1, col2, n) colnames(bothExtraction_filt_counts_gat_subSelection)[1:2] = c("hap1", "hap2") bothExtraction_filt_counts_gat_subSelection_filt = bothExtraction_filt_counts_gat_subSelection %>% filter(hap1 != "notTypeable", hap2 != "notTypeable") %>% group_by(hap1, hap2) %>% summarise(n = sum(n)) bothExtraction_filt_counts_hapLinkCounts = bind_rows( bothExtraction_filt_counts_hapLinkCounts, bothExtraction_filt_counts_gat_subSelection_filt ) } bothExtraction_filt_chromosomeLinkageInfo = bothExtraction_filt %>% select(`#chrom`, `Pf3D7_11_v3-1919677-1919761-for__var-0`) %>% filter(`Pf3D7_11_v3-1919677-1919761-for__var-0` != "notTypeable") %>% group_by(`#chrom`, `Pf3D7_11_v3-1919677-1919761-for__var-0`) %>% count() bothExtraction_filt_chromosomeLinkageInfo_addToHapCounts = bothExtraction_filt_chromosomeLinkageInfo %>% rename(haplotype = `#chrom` ) %>% group_by(haplotype) %>% summarise(n = sum(n)) bothExtraction_filt_counts_gat_hapCounts = bothExtraction_filt_counts_gat_hapCounts %>% bind_rows(bothExtraction_filt_chromosomeLinkageInfo_addToHapCounts) #zero based position source/target nodes bothExtraction_filt_counts_hapLinkCounts = bothExtraction_filt_counts_hapLinkCounts %>% mutate(source = match(hap1, bothExtraction_filt_counts_gat_hapCounts$haplotype) -1) %>% mutate(target = match(hap2, bothExtraction_filt_counts_gat_hapCounts$haplotype) -1) bothExtraction_filt_chromosomeLinkageInfo = bothExtraction_filt_chromosomeLinkageInfo %>% rename(hap1 = `#chrom`, hap2 = `Pf3D7_11_v3-1919677-1919761-for__var-0`) %>% mutate(source = match(hap1, bothExtraction_filt_counts_gat_hapCounts$haplotype) -1) %>% mutate(target = match(hap2, bothExtraction_filt_counts_gat_hapCounts$haplotype) -1) bothExtraction_filt_counts_hapLinkCounts = bothExtraction_filt_counts_hapLinkCounts %>% bind_rows(bothExtraction_filt_chromosomeLinkageInfo) # adding in chromosome linkage to front bothExtraction_filt_counts_hapLinkCounts = as.data.frame(bothExtraction_filt_counts_hapLinkCounts) bothExtraction_filt_counts_gat_hapCounts = as.data.frame(bothExtraction_filt_counts_gat_hapCounts) # Thus we can plot it p <- sankeyNetwork( Links = bothExtraction_filt_counts_hapLinkCounts, Nodes = bothExtraction_filt_counts_gat_hapCounts, Source = "source", Target = "target", Value = "n", NodeID = "haplotype", units = "reads", fontSize = 12, nodeWidth = 30 ) ``` There is some cross linkage between the variants but this is low level and could either represent typing error or even possibly low level of continued recombination between these regions. ```{r} #| fig-column: screen-inset-shaded #| column: screen-inset-shaded p ``` ```{r} bothExtraction_filt_mod_sel = bothExtraction_filt_mod %>% select(starts_with("Pf3D7"), `#chrom`, rowid) %>% gather(region, hap, 1:4) %>% mutate(hapVar = gsub(".*\\.", "", hap)) %>% filter(hapVar != "notTypeable") %>% group_by(`#chrom`, rowid,hapVar) %>% count() %>% group_by(`#chrom`, rowid) %>% filter(n == max(n)) bothExtraction_filt_mod_sel_counts = bothExtraction_filt_mod_sel%>% group_by(`#chrom`, rowid) %>% mutate(varCounts = n()) %>% mutate(typed = case_when(varCounts > 1 ~ "indeterminate", hapVar == 1 ~ "chr11", hapVar == 0 ~ "chr13")) bothExtraction_filt_mod_sel_counts_type = bothExtraction_filt_mod_sel_counts %>% select(`#chrom`, rowid, typed) %>% group_by() %>% unique() bothExtraction_filt_mod_typed = bothExtraction_filt_mod %>% left_join(bothExtraction_filt_mod_sel_counts_type) illuminaExtraction_filt_mod_sel = illuminaExtraction_filt_mod %>% select(starts_with("Pf3D7"), `#chrom`, rowid) %>% gather(region, hap, 1:3) %>% mutate(hapVar = gsub(".*\\.", "", hap)) %>% filter(hapVar != "notTypeable") %>% group_by(`#chrom`, rowid,hapVar) %>% count() %>% group_by(`#chrom`, rowid) %>% filter(n == max(n)) illuminaExtraction_filt_mod_sel_counts = illuminaExtraction_filt_mod_sel%>% group_by(`#chrom`, rowid) %>% mutate(varCounts = n()) %>% mutate(typed = case_when(varCounts > 1 ~ "indeterminate", hapVar == 1 ~ "chr11", hapVar == 0 ~ "chr13")) illuminaExtraction_filt_mod_sel_counts_type = illuminaExtraction_filt_mod_sel_counts %>% select(`#chrom`, rowid, typed) %>% group_by() %>% unique() illuminaExtraction_filt_mod_typed = illuminaExtraction_filt_mod %>% left_join(illuminaExtraction_filt_mod_sel_counts_type) ``` ## Plotting by strongest chromosome association Colored by the chromosome associated variation (chr11 vs chr13). If a read has multiple loci and there is a tie between the different chromosomes then it is colored indeterminate. ```{r} #| fig-column: screen-inset-shaded chrVarPlot = ggplot() + geom_rect(aes(xmin = start, xmax = end, ymin = rowid, ymax = rowid + 1, fill = typed), color = "black", data = bothExtraction_filt_mod_typed %>% mutate(typed = factor(typed, levels = c("indeterminate", "chr13", "chr11")))) + scale_fill_manual(values = c("#3DB7E9", "#D55E00", "#9F0162"), name= "Associated Chromosome\nVariation", guide = guide_legend( ncol = 1 ) ) + ggnewscale::new_scale_fill() + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0, fill = "Duplicated Region"), color = "black", #fill = "#2271B2", data = homologousRegionWithPureHybrid) + geom_rect(aes(xmin = X2, xmax = X3, ymin = -10, ymax = 0, fill = "SD01 Variant Sites"), #color = "black", #fill = "#F748A5", data = multiRegionPureHybrid) + scale_fill_manual("Genomic", values = c("Duplicated Region" = "#2271B2", "SD01 Variant Sites" = "#F748A5")) + guides(fill = guide_legend(ncol = 1)) + sofonias_theme + theme(axis.text.x = element_text(size=12, angle = -45, vjust = 0.5, hjust = 0)) + facet_wrap(~X1, scales = "free") print(chrVarPlot) ``` ```{r} pdf("SD01_variation_associated_reads_plot.pdf", width = 8, height = 6, useDingbats = F) print(chrVarPlot) dev.off() ``` ```{r} # pacbio and nanopore bothExtraction_filt_mod_typedchr11 = bothExtraction_filt_mod_typed %>% filter(typed == "chr11") write_tsv(bothExtraction_filt_mod_typedchr11, "nanoPacbio_typed11.tab.txt") bothExtraction_filt_mod_typedchr13 = bothExtraction_filt_mod_typed %>% filter(typed == "chr13") write_tsv(bothExtraction_filt_mod_typedchr13, "nanoPacbio_typed13.tab.txt") bothExtraction_filt_mod_typedchr13 = bothExtraction_filt_mod_typed %>% filter(typed == "chr13") write_tsv(bothExtraction_filt_mod_typedchr13, "nanoPacbio_typed13.tab.txt") # illumina illuminaExtraction_filt_mod_typedchr11 = illuminaExtraction_filt_mod_typed %>% filter(typed == "chr11") write_tsv(illuminaExtraction_filt_mod_typedchr11, "illumina_typed11.tab.txt") illuminaExtraction_filt_mod_typedchr13 = illuminaExtraction_filt_mod_typed %>% filter(typed == "chr13") write_tsv(illuminaExtraction_filt_mod_typedchr13, "illumina_typed13.tab.txt") illuminaExtraction_filt_mod_typedchr13 = illuminaExtraction_filt_mod_typed %>% filter(typed == "chr13") write_tsv(illuminaExtraction_filt_mod_typedchr13, "illumina_typed13.tab.txt") ``` ```{bash, eval = F} cd /tank/projects/plasmodium/falciparum/hrp/hrp3_deletion/nanopore/extractingFromRawFastqs elucidator printCol --file nanoPacbio_typed11.tab.txt --delim tab --header --columnName oldName --unique --sort --out chr11_names.txt --overWrite elucidator printCol --file nanoPacbio_typed13.tab.txt --delim tab --header --columnName oldName --unique --sort --out chr13_names.txt --overWrite nohup elucidator extractByName --fastqgz ../pacbioReads/combined.fastq.gz --names chr11_names.txt --out pacbio_chr11_combined.fastq.gz --overWrite --trimAtWhiteSpace & nohup elucidator extractByName --fastqgz ../pacbioReads/combined.fastq.gz --names chr13_names.txt --out pacbio_chr13_combined.fastq.gz --overWrite --trimAtWhiteSpace & nohup elucidator extractByName --fastqgz ../pacbioReads/combined.fastq.gz --names chr11_names.txt --out pacbio_allButChr11_combined.fastq.gz --overWrite --trimAtWhiteSpace --excluding & nohup elucidator extractByName --fastqgz ../pacbioReads/combined.fastq.gz --names chr13_names.txt --out pacbio_allButChr13_combined.fastq.gz --overWrite --trimAtWhiteSpace --excluding & nohup elucidator extractByName --fastqgz ../rawFastq/PfSD01PermethION.fastq.gz --names chr11_names.txt --out nano_chr11_PfSD01PermethION.fastq.gz --overWrite --trimAtWhiteSpace & nohup elucidator extractByName --fastqgz ../rawFastq/PfSD01PermethION.fastq.gz --names chr13_names.txt --out nano_chr13_PfSD01PermethION.fastq.gz --overWrite --trimAtWhiteSpace & nohup elucidator extractByName --fastqgz ../rawFastq/PfSD01PermethION.fastq.gz --names chr11_names.txt --out nano_allButChr11_PfSD01PermethION.fastq.gz --overWrite --trimAtWhiteSpace --excluding & nohup elucidator extractByName --fastqgz ../rawFastq/PfSD01PermethION.fastq.gz --names chr13_names.txt --out nano_allButChr13_PfSD01PermethION.fastq.gz --overWrite --trimAtWhiteSpace --excluding & cat nano_allButChr11_PfSD01PermethION.fastq.gz pacbio_chr13_combined.fastq.gz > ../combinedRawFastqs/PfSD01PermethION_withPacbio_forchr13.fastq.gz cat nano_allButChr13_PfSD01PermethION.fastq.gz pacbio_chr11_combined.fastq.gz > ../combinedRawFastqs/PfSD01PermethION_withPacbio_forchr11.fastq.gz ```
