Characterizing Duplicated Region

Investigating shared region within pacbio assemblies(Otto et al. 2018)

Code

for x in /tank/data/genomes/plasmodium/genomes/pf/genomes/*.fasta; do elucidator splitFile --fasta ${x} --overWrite --trimAtWhiteSpace  ; done;

These strains have complete chromosome 11s and 13s

Pf3D7
Pf7G8
PfCD01
PfDd2
PfGA01
PfGB4
PfGN01
PfKE01
PfKH02
PfSN01

Code

strains = c("Pf3D7","Pf7G8","PfCD01","PfDd2","PfGA01","PfGB4","PfGN01","PfKE01","PfKH02","PfSN01")

cat(strains, sep = "\n", file = "stableStrains.txt")

strainsDf = tibble(strain = strains)
strainsDf = strainsDf %>%
  mutate(chrom11 = paste0(strain, "_11*.fasta")) %>%
  mutate(chrom13 = paste0(strain, "_13*.fasta"))

mvCmd = paste0("mv ", paste0(strainsDf$chrom11, collapse = " "), " ", paste0(strainsDf$chrom13, collapse = " "), " combinedChrom11_13/")

cat(mvCmd)

mv Pf3D7_11*.fasta Pf7G8_11*.fasta PfCD01_11*.fasta PfDd2_11*.fasta PfGA01_11*.fasta PfGB4_11*.fasta PfGN01_11*.fasta PfKE01_11*.fasta PfKH02_11*.fasta PfSN01_11*.fasta Pf3D7_13*.fasta Pf7G8_13*.fasta PfCD01_13*.fasta PfDd2_13*.fasta PfGA01_13*.fasta PfGB4_13*.fasta PfGN01_13*.fasta PfKE01_13*.fasta PfKH02_13*.fasta PfSN01_13*.fasta combinedChrom11_13/

Code

elucidator profileSharedKmerBlocks --seq Pf3D7_11_v3.fasta --dout chroms11_13_klen31 --kLen 31 --seqsDir ./ --fasta Pf3D7_11_v3.fasta --overWriteDir

cd chroms11_13_klen31

elucidator bedCoordSort --bed perfect.bed | elucidator extendBedRegions --left 5 --right 5 --bed STDIN | bedtools merge | elucidator bed3ToBed6 --bed STDIN  | elucidator filterBedRecordsByLength --bed STDIN  --minLen 65 | elucidator bedGetIntersectingGenesInGff  --gff /work/nhathawa/genomes/pfGenomes_updated/info//gff/Pf3D7.gff --extraAttributes description --overWrite --bed STDIN --out perfectlyShared_minlen65.bed

elucidator getFastaWithBed  --twoBit /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.2bit  --overWrite --bed perfectlyShared_minlen65.bed --out perfectlyShared_minlen65


elucidator extractRefSeqsFromGenomes --genomeDir /tank/data/genomes/plasmodium/genomes/pf/genomes/ --gffDir /tank/data/genomes/plasmodium/genomes/pf/info/gff/ --primaryGenome Pf3D7 --bed perfectlyShared_minlen65.bed --outputDir extractedRefSeqs --identity 95 --coverage 95 --numThreads 15

Code

perfectlyShared_minlen65_regions = readr::read_tsv("combinedChrom11_13/chroms11_13_klen31/perfectlyShared_minlen65.bed", col_names = F)
perfectlyShared_minlen65_regions = perfectlyShared_minlen65_regions %>%
  mutate(X4 = paste0(X4, "-for"))

allRegions = tibble()
for(region in perfectlyShared_minlen65_regions$X4){
  for(strain in strains){
    fnp= paste0("combinedChrom11_13/chroms11_13_klen31/extractedRefSeqs/", region, "/beds/", strain, "_region.bed")
    if(file.exists(fnp)){
      currentRegion = readr::read_tsv(fnp, col_names = F, show_col_types = F)
      currentRegion$X4 = region
      currentRegion$strain = strain
      allRegions = bind_rows(
        allRegions, currentRegion
      )
    }
  }
}

allRegions_sum = allRegions %>%
  group_by(strain, X1) %>%
  summarise(start = min(X2),
         end = max(X3)) %>%
  filter(grepl("_1[13]", X1)) %>%
  rename(`#chrom` = X1) %>%
  mutate(start = start - 5000) %>%
  mutate(end = end + 5000) %>%
  mutate(name = paste0(`#chrom`, "-", start, "-", end),
         len = end - start,
         strand = "+")

for(strainName in strains){
  allRegions_sum_byStrain = allRegions_sum %>%
    filter(strain == strainName)
  allRegions_sum_byStrain = allRegions_sum_byStrain %>%
    group_by() %>%
    select(-strain)
  write_tsv(allRegions_sum_byStrain, paste0("combinedChrom11_13/chroms11_13_regions/", strainName, ".bed"))
}




allRegions_sum_exact = allRegions %>%
  group_by(strain, X1) %>%
  summarise(start = min(X2),
         end = max(X3)) %>%
  filter(grepl("_1[13]", X1)) %>%
  rename(`#chrom` = X1) %>%
  mutate(start = start) %>%
  mutate(end = end) %>%
  mutate(name = paste0(`#chrom`, "-", start, "-", end),
         len = end - start,
         strand = "+")

for(strainName in strains){
  allRegions_sum_byStrain = allRegions_sum_exact %>%
    filter(strain == strainName)
  allRegions_sum_byStrain = allRegions_sum_byStrain %>%
    group_by() %>%
    select(-strain)
  write_tsv(allRegions_sum_byStrain, paste0("combinedChrom11_13/chroms11_13_regions_exact/", strainName, ".bed"))
}

Code

cd chroms11_13_regions_exact

for x in *.bed; do elucidator getFastaWithBed --bed $x --twoBit /tank/data/genomes/plasmodium/genomes/pf/genomes/${x%%.bed}.2bit --overWrite --out ${x%%.bed}.fasta ; done;

mkdir sequences
cd sequences

for x in ../*.fasta; do elucidator splitFile --fasta  $x ; done;

elucidator profileSharedKmerBlocks --seq Pf3D7_11_v3-1913023-1938396.fasta --dout chroms11_13_klen31 --kLen 31 --seqsDir ./ --fasta Pf3D7_11_v3-1913023-1938396.fasta --overWriteDir

Code

cd chroms11_13_regions

mkdir allSequences
for x in Pf*.bed; do elucidator getFastaWithBed --bed $x --twoBit /tank/data/genomes/plasmodium/genomes/pf/genomes/${x%%.bed}.2bit --overWrite --out ${x%%.bed}.fasta ; done;

cat *.fasta > allSequences/all.fasta
cat Pf*.bed > all.bed
cd allSequences

muscle -in all.fasta -out aln_all.fasta

elucidator trimToLen --fasta aln_all.fasta --length 21945 --overWrite --out trimmed_to_21945_aln_all.fasta
elucidator trimFront --fasta trimmed_to_21945_aln_all.fasta --forwardBases 21845 --overWrite --out trimmedFrom_21845_trimmed_to_21945_aln_all.fasta
elucidator sortReads --fasta trimmedFrom_21845_trimmed_to_21945_aln_all.fasta --removeGaps  --overWrite
elucidator determineRegionLastz --individual --fasta sorted_trimmedFrom_21845_trimmed_to_21945_aln_all.fasta --genome /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.2bit   -out sorted_trimmedFrom_21845_trimmed_to_21945_aln_all.bed


elucidator trimToLen --fasta aln_all.fasta --length 6051 --overWrite --out trimmed_to_6051_aln_all.fasta
elucidator trimFront --fasta trimmed_to_6051_aln_all.fasta --forwardBases 5951 --overWrite --out trimmedFrom_5951_trimmed_to_6051_aln_all.fasta
elucidator sortReads --fasta trimmedFrom_5951_trimmed_to_6051_aln_all.fasta --removeGaps  --overWrite
elucidator determineRegionLastz --individual --fasta sorted_trimmedFrom_5951_trimmed_to_6051_aln_all.fasta --genome /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.2bit --overWrite --out sorted_trimmedFrom_5951_trimmed_to_6051_aln_all.bed

elucidatorlab getMalnConservedness --fasta aln_all.fasta  --blockSize 10 --overWrite --out aln_all_conserved.tab.txt
elucidatorlab getAlnPosToRealPosTable --fasta aln_all.fasta --overWrite --out aln_all_position_table.tab.txt

Beginning of the section

Pf3D7_11_v3-1918029-1918124–Pf3D7_13_v3-2792022-2792117

Middle

Variation in the middle, does not appear to be chromosome specific (though could have been a difference in assembly)

End of the section

Pf3D7_11_v3-1933291-1933390–Pf3D7_13_v3-2807298-2807397

The region is ~15,360 kp long, so could be hard to get through even with long reads

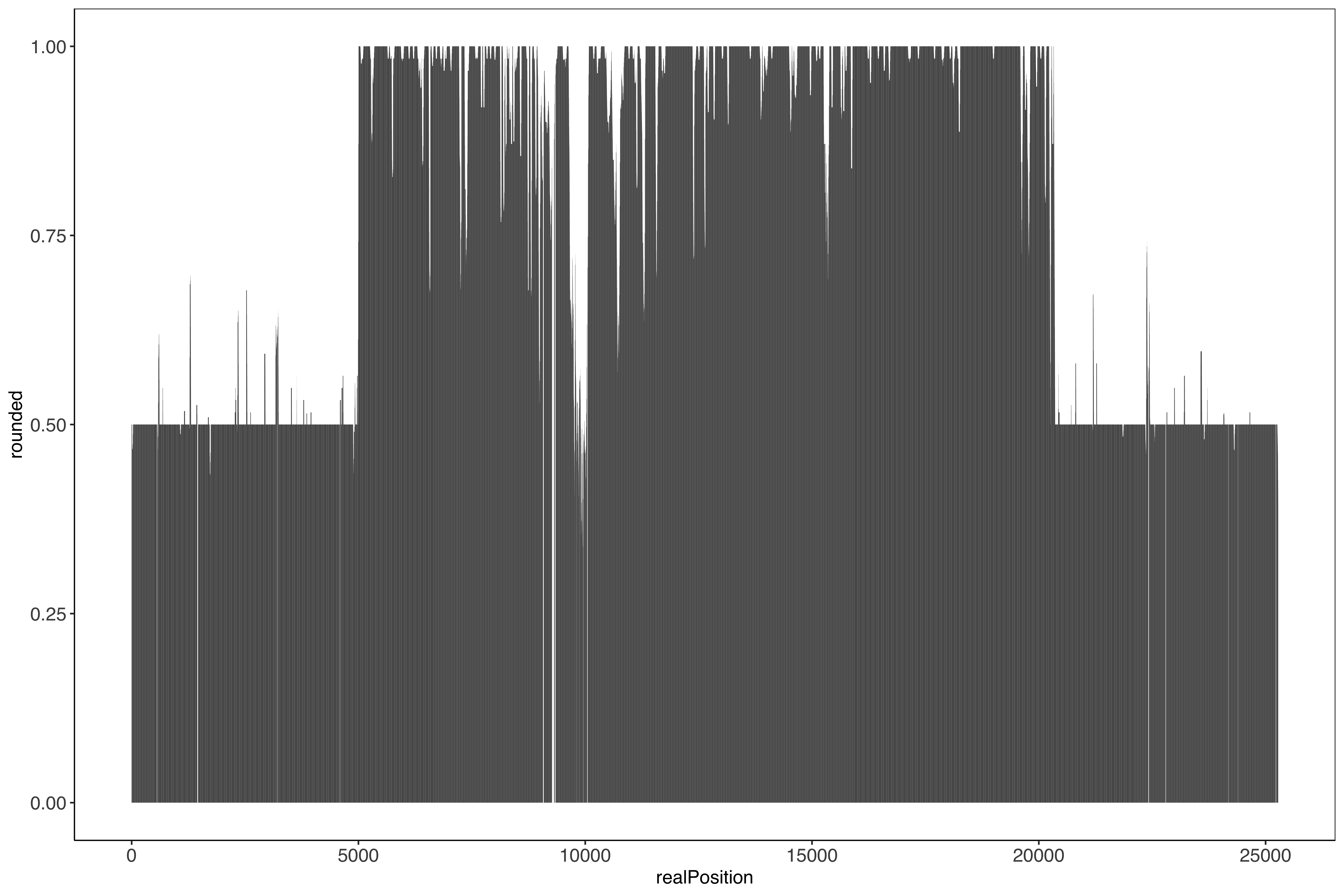

Conserved score

Plotting the percent conserved per position across the region including the before and after shared segment, all strains appear to start and end at the same position

Code

conservedPosTab = readr::read_tsv("combinedChrom11_13/chroms11_13_regions/allSequences/aln_all_position_table.tab.txt") %>%
  filter("Pf3D7_11_v3-1913023-1938396" == name) %>%
  rename(pos = alignPosition)

conservedMulti = readr::read_tsv("combinedChrom11_13/chroms11_13_regions/allSequences/aln_all_conserved.tab.txt")

conservedMulti_max = conservedMulti %>%
  group_by(pos) %>%
  filter(frac == max(frac)) %>%
  filter("----------" != block ) %>%
  left_join(conservedPosTab) %>%
  filter(!is.na(name)) %>%
  filter()

blockSize = 30

conservedMulti_max_rounding = tibble(rawPos = 1:(nrow(conservedMulti_max) - blockSize),
                                     realPosition = numeric(nrow(conservedMulti_max) - blockSize),
                                     rounded = numeric(nrow(conservedMulti_max) - blockSize))


for(row in 1:(nrow(conservedMulti_max) - blockSize)){
  round = mean(conservedMulti_max$frac[row:(row+blockSize)])
  if(round > 1){
    print(row)
    print(blockSize)
    print(conservedMulti_max$frac[row:(row+blockSize)])
    print(round)
    stop()
  }
  minPos = min(conservedMulti_max$realPosition[row:(row+blockSize)])
  conservedMulti_max_rounding$realPosition[row] = minPos
  conservedMulti_max_rounding$rounded[row] = round
}

conservedMulti_max_rounding_filt = conservedMulti_max_rounding %>%
  group_by(realPosition) %>%
  mutate(id = row_number()) %>%
  filter(id == 1) %>%
  group_by()

Code

ggplot(conservedMulti_max_rounding_filt) +
  geom_bar(aes(x = realPosition, y = rounded), stat = "identity")+
  sofonias_theme

Code

cd chroms11_13_regions_exact

cat *.fasta > all.fasta
elucidator compareAllByAll --fasta all.fasta --verbose --numThreads 12
elucidator createSharedSubSegmentsFromRefSeqs --fasta out.fasta --minimumKlen 12 --dout sharedSubSeqs_occurence6 --filterRegionsWithinRegions --refSeqName Pf3D7_11_v3-1918023-1933396 --overWriteDir --genome /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.fasta --minSubRegionLen 150 --maxSubRegionLen 300 --minBlockRegionLen 30 --doNotCollapseLowFreqNodes --correctionOccurenceCutOff 6 --includeFromSubRegionSize 30

muscle -in all.fasta -out aln_all.fasta

FastTree -nt aln_all.fasta > aln_all.nwk

elucidatorlab getMalnConservedness --fasta aln_all.fasta  --blockSize 10 --overWrite --out aln_all_conserved.tab.txt
elucidatorlab getAlnPosToRealPosTable --fasta aln_all.fasta --overWrite --out aln_all_position_table.tab.txt

elucidator multipleAlnProteinToPcaInput --fasta aln_all.fasta --overWrite --out pcaMat_aln_all.fasta
elucidator runTRF --fasta all.fasta --overWriteDir --dout all_trfOutput --supplement --genomicLocation ../all.bed

elucidator bedFilterRegionsCompletelyInOther --bed all_trfOutput/genomic_combined.bed --intersectWithBed all_trfOutput/genomic_combined.bed | elucidator bedAddSmartIDForPlotting --bed STDIN --out all_trfOutput/filtered_genomic_combined.bed --overWrite

elucidator countBasesPerPosition --fasta aln_all.fasta --overWrite --out aln_all_baseCounts.tab.txt

#elucidator createSharedSubSegmentsFromRefSeqs --fasta out.fasta --minimumKlen 12 --dout sharedSubSeqs_occurence6 --filterRegionsWithinRegions --refSeqName Pf3D7_11_v3-1918023-1933396 --overWriteDir --genome /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.fasta --minSubRegionLen 150 --maxSubRegionLen 300 --minBlockRegionLen 30 --doNotCollapseLowFreqNodes --correctionOccurenceCutOff 6 --includeFromSubRegionSize 30

#cd sharedSubSeqs_occurence6/sharedLocs

#elucidator bedGetIntersectingGenesInGff  --gff /tank/data/genomes/plasmodium/genomes/pf/info/gff/Pf3D7.gff --extraAttributes description --overWrite --bed 0_ref_sharedLocs_genomic.bed --out 0_ref_sharedLocs_genomic_withGeneInfo.bed

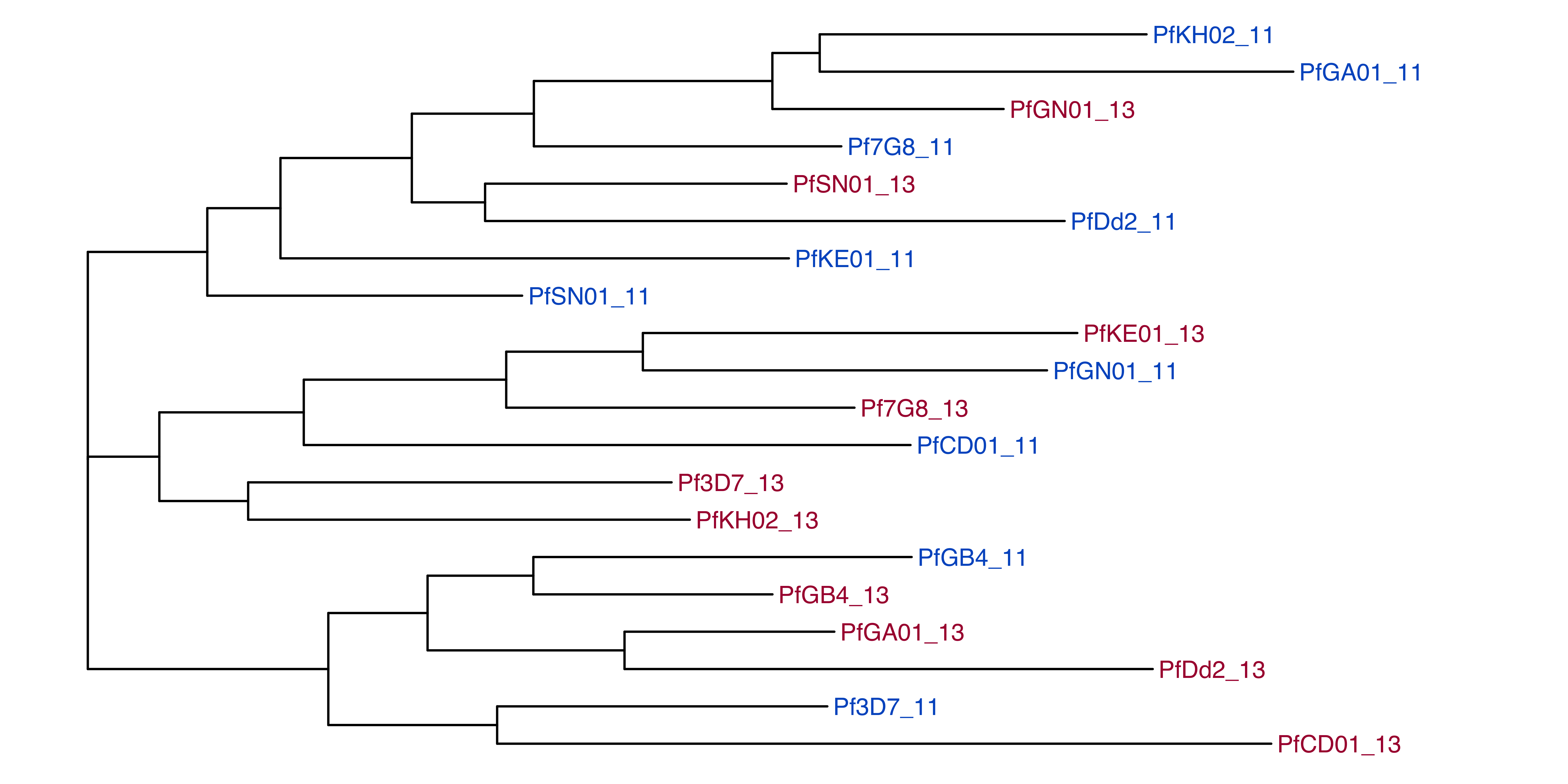

Comparing chromsome 11 and 13 segments

The chromosome 11 and 13 regions appear to be extremely closely related to each other and there is no clear variation specific to chromosome 11 or 13

Code

library(ggtree)
tree = ape::read.tree("combinedChrom11_13/chroms11_13_regions_exact/sequences/aln_all.nwk")


tree$tip.label = gsub("_v3", "", gsub("-.*", "", tree$tip.label))

tipDf = tibble(seq = tree$tip.label) %>%
  mutate(chrom = ifelse(grepl("_11", seq), "chrom11", "chrom13"))
tipDf_chrom11 = tipDf %>%
  filter(chrom == "chrom11")
tipDf_chrom13 = tipDf %>%
  filter(chrom == "chrom13")

groups = list(chrom11 = tipDf_chrom11$seq,
              chrom13 = tipDf_chrom13$seq)

tree = groupOTU(tree, groups)

sharedRegion_pacbioAssembliesPlot = ggtree::ggtree(tree, show.legend = FALSE) +
  hexpand(.1) +
  geom_tiplab(aes(color = group), show.legend = FALSE) +
  scale_color_manual(values = c("#005AC8", "#AA0A3C"))

Code

print(sharedRegion_pacbioAssembliesPlot)

Code

pdf("sharedRegion_pacbioAssemblies.pdf", width = 7.5, height = 7.5/2, useDingbats = F)
print(sharedRegion_pacbioAssembliesPlot)
dev.off()

quartz_off_screen
                2

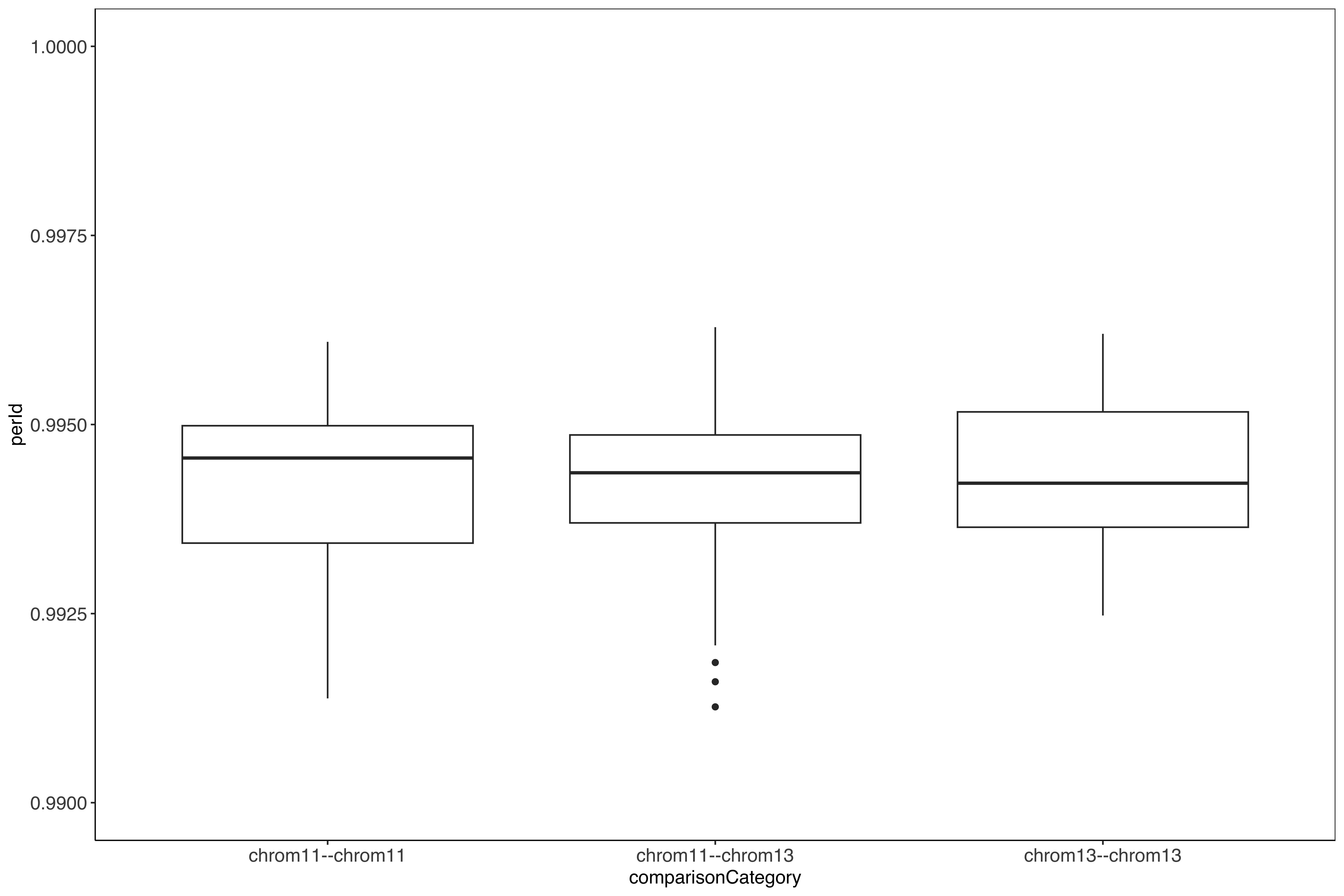

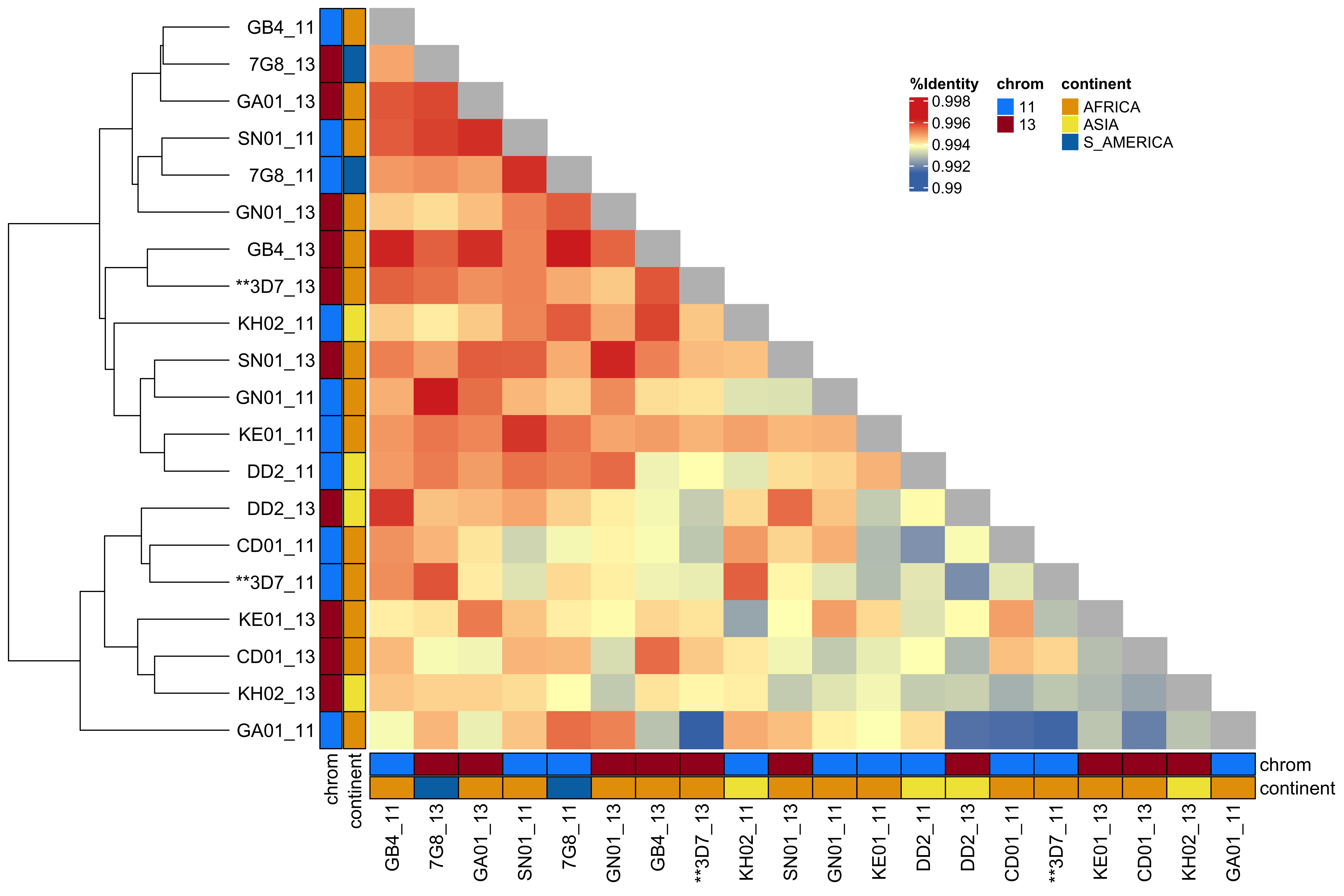

Comparing Percent Identity

All segments between strains are more >99% related to each other

Code

allByAllComp = readr::read_tsv("combinedChrom11_13/chroms11_13_regions_exact/sequences/out.tab.txt")

Code

allByAllComp_select = allByAllComp %>%
  select(OtherReadId, ReadId, perId) %>%
  spread(ReadId, perId)

addRow =  matrix(c(colnames(allByAllComp_select)[2], rep(NA, ncol(allByAllComp_select) - 1)), nrow = 1)
colnames(addRow) = colnames(allByAllComp_select)
addRow = as_tibble(addRow)
for(col in 2:ncol(addRow)){
  addRow[,col] = as.numeric(addRow[,col])
}


allByAllComp_select = as_tibble(addRow) %>% bind_rows(allByAllComp_select)


allByAllComp_select_mat = as.matrix(allByAllComp_select[,2:ncol(allByAllComp_select)])
rownames(allByAllComp_select_mat) = allByAllComp_select$OtherReadId

allByAllComp_select_mat = as.matrix(as.dist(allByAllComp_select_mat))
allByAllComp_select_mat[0 == allByAllComp_select_mat] = NA

Code

library(circlize)
meta = readr::read_tsv("../../meta/metadata/meta.tab.txt") %>%
  mutate(country = gsub("South East Asia - East", "Cambodia", country))
metaByBioSample = readr::read_tsv("../../meta/metadata/metaByBioSample.tab.txt") %>%
  mutate(country = gsub("South East Asia - East", "Cambodia", country))



allByAllComp_select_mat_noLabels = allByAllComp_select_mat
# rownames(allByAllComp_select_mat_noLabels) = NULL
# colnames(allByAllComp_select_mat_noLabels) = NULL


rownames(allByAllComp_select_mat_noLabels) = gsub("Dd2", "DD2", gsub("Pf", "", gsub("_v3", "", gsub("-.*", "", rownames(allByAllComp_select_mat_noLabels)))))
colnames(allByAllComp_select_mat_noLabels) = gsub("Dd2", "DD2", gsub("Pf", "", gsub("_v3", "", gsub("-.*", "", colnames(allByAllComp_select_mat_noLabels)))))


col_fun = colorRamp2(c(
  min(allByAllComp_select_mat_noLabels, na.rm = T),
  min(allByAllComp_select_mat_noLabels, na.rm = T) + (
    max(allByAllComp_select_mat_noLabels, na.rm = T) - min(allByAllComp_select_mat_noLabels, na.rm = T)
  ) / 2,
  max(allByAllComp_select_mat_noLabels, na.rm = T)
),
c("#4575b4", "#ffffbf", "#d73027"))
#c("#ffeda0", "#feb24c", "#f03b20"))



topAnnoDat = tibble(name = colnames(allByAllComp_select_mat)) %>%
  mutate(sampchrom = gsub("_v3", "", gsub("-.*", "", name))) %>%
  mutate(sample = gsub("Dd2", "DD2", gsub("_.*", "", gsub("Pf", "", sampchrom)))) %>%
  mutate(chrom = gsub(".*_", "", sampchrom)) %>%
  left_join(metaByBioSample %>%
              select(sample, secondaryRegion))

topAnno_df = topAnnoDat[,c("chrom", "secondaryRegion")] %>%
  rename(continent = secondaryRegion) %>%
  mutate(continent = gsub("Netherlands", "AFRICA", continent) ) %>%
  as.data.frame()

topAnnoColors = createColorListFromDf(topAnno_df)

topAnnoColors[["continent"]] = c("AFRICA"  =   "#E69F00",
                                 "ASIA" =      "#F0E442",
                                 "OCEANIA"  =  "#F748A5",
                                 "S_AMERICA" = "#0072B2",
                                 "Netherlands"="black")

topAnnoColors[["chrom"]] = c("11" = "#008DF9", "13" = "#A40122")



topAnno = HeatmapAnnotation(
  df = topAnno_df,
  col = topAnnoColors,
  show_legend = F,
  gp = gpar(col = "black")
  # the annotation direction doesn't appear to work right now
  # annotation_legend_param = list(
  #   chrom = list(legend_direction = "horizontal", direction = "horizontal"),
  #   continent = list(legend_direction = "horizontal", direction = "horizontal")
  # )
)

sideAnno = rowAnnotation(
  df = topAnno_df,
  col = topAnnoColors,
  show_legend = F,
  gp = gpar(col = "black")
  # ,
  # annotation_legend_param = list(
  #   chrom = list(legend_direction = "horizontal", direction = "horizontal"),
  #   continent = list(legend_direction = "horizontal", direction = "horizontal")
  # )
)

colnames(allByAllComp_select_mat_noLabels) = gsub("3D7", "**3D7", colnames(allByAllComp_select_mat_noLabels))
rownames(allByAllComp_select_mat_noLabels) = gsub("3D7", "**3D7", rownames(allByAllComp_select_mat_noLabels))

hc = hclust(dist(allByAllComp_select_mat_noLabels))
allByAllComp_select_mat_heatmap = Heatmap(
  allByAllComp_select_mat_noLabels,
  rect_gp = gpar(type = "none"),
  column_dend_side = "bottom",
  cell_fun = function(j, i, x, y, w, h, fill) {
    if (as.numeric(x) <= 1 - as.numeric(y) + 1e-6) {
      grid.rect(x, y, w, h, gp = gpar(fill = fill, col = fill))
    }
  },
  # cluster_rows = hc,
  # cluster_columns = hc,
  row_names_side = "left",
  name = "%Identity",
  col = col_fun,
  bottom_annotation = topAnno,
  left_annotation = sideAnno,
  row_dend_width = unit(5, "cm"),
  column_dend_height = unit(5, "cm"),
  show_column_dend = F,
  show_heatmap_legend = F

  # ,
  # heatmap_legend_param = list(
  #   direction = "horizontal"
  # )
)

chrom_lgd = Legend(labels = sort(unique(topAnno_df$chrom)), title = "chrom", legend_gp = gpar(fill = topAnnoColors[["chrom"]][sort(unique(topAnno_df$chrom))]))
continent_lgd = Legend(labels = sort(unique(topAnno_df$continent)), title = "continent", legend_gp = gpar(fill = topAnnoColors[["continent"]][sort(unique(topAnno_df$continent))]))
heatmap_lgd = Legend(col_fun = col_fun, title = "%Identity")

Code

draw(allByAllComp_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left")
draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd,  direction = "horizontal"), x = unit(0.775, "npc"), y = unit(0.85, "npc"))

Code

pdf("sharedRegion_pacbioAssemblies_percentIdentity.pdf", width = 7.5, height = 5, useDingbats = F)
draw(allByAllComp_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left")
draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd,  direction = "horizontal"), x = unit(0.775, "npc"), y = unit(0.85, "npc"))
dev.off()

quartz_off_screen
                2

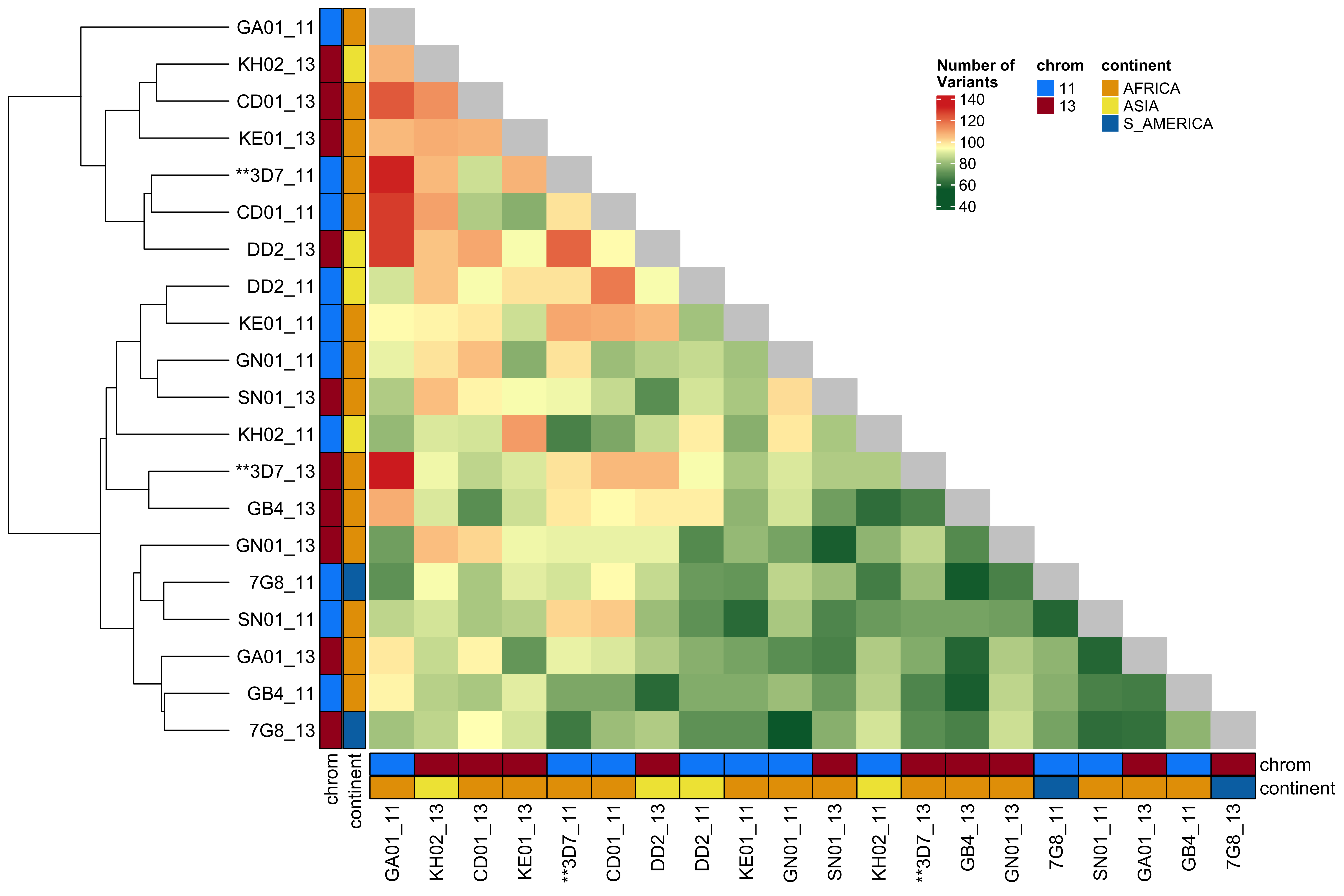

Comparing Number of variants

Code

allByAllCompVarCount_select = allByAllComp %>%
  select(OtherReadId, ReadId, totalDiffs) %>%
  spread(ReadId, totalDiffs)

addRow =  matrix(c(colnames(allByAllCompVarCount_select)[2], rep(NA, ncol(allByAllCompVarCount_select) - 1)), nrow = 1)
colnames(addRow) = colnames(allByAllCompVarCount_select)
addRow = as_tibble(addRow)
for(col in 2:ncol(addRow)){
  addRow[,col] = as.numeric(addRow[,col])
}


allByAllCompVarCount_select = as_tibble(addRow) %>% bind_rows(allByAllCompVarCount_select)


allByAllCompVarCount_select_mat = as.matrix(allByAllCompVarCount_select[,2:ncol(allByAllCompVarCount_select)])
rownames(allByAllCompVarCount_select_mat) = allByAllCompVarCount_select$OtherReadId

allByAllCompVarCount_select_mat = as.matrix(as.dist(allByAllCompVarCount_select_mat))
allByAllCompVarCount_select_mat[0 == allByAllCompVarCount_select_mat] = NA

Code

library(circlize)
meta = readr::read_tsv("../../meta/metadata//meta.tab.txt") %>%
  mutate(country = gsub("South East Asia - East", "Cambodia", country))
metaByBioSample = readr::read_tsv("../../meta/metadata/metaByBioSample.tab.txt") %>%
  mutate(country = gsub("South East Asia - East", "Cambodia", country))



allByAllCompVarCount_select_mat_noLabels = allByAllCompVarCount_select_mat
# rownames(allByAllCompVarCount_select_mat_noLabels) = NULL
# colnames(allByAllCompVarCount_select_mat_noLabels) = NULL


rownames(allByAllCompVarCount_select_mat_noLabels) = gsub("Dd2", "DD2", gsub("Pf", "", gsub("_v3", "", gsub("-.*", "", rownames(allByAllCompVarCount_select_mat_noLabels)))))
colnames(allByAllCompVarCount_select_mat_noLabels) = gsub("Dd2", "DD2", gsub("Pf", "", gsub("_v3", "", gsub("-.*", "", colnames(allByAllCompVarCount_select_mat_noLabels)))))


col_fun = colorRamp2(c(
  min(allByAllCompVarCount_select_mat_noLabels, na.rm = T),
  min(allByAllCompVarCount_select_mat_noLabels, na.rm = T) + (
    max(allByAllCompVarCount_select_mat_noLabels, na.rm = T) - min(allByAllCompVarCount_select_mat_noLabels, na.rm = T)
  ) / 2,
  max(allByAllCompVarCount_select_mat_noLabels, na.rm = T)
),
c("#006837", "#ffffbf", "#d73027"))
#c("#4575b4", "#ffffbf", "#d73027"))
#c("#ffeda0", "#feb24c", "#f03b20"))



topAnnoDat = tibble(name = colnames(allByAllCompVarCount_select_mat)) %>%
  mutate(sampchrom = gsub("_v3", "", gsub("-.*", "", name))) %>%
  mutate(sample = gsub("Dd2", "DD2", gsub("_.*", "", gsub("Pf", "", sampchrom)))) %>%
  mutate(chrom = gsub(".*_", "", sampchrom)) %>%
  left_join(metaByBioSample %>%
              select(sample, secondaryRegion))

topAnno_df = topAnnoDat[,c("chrom", "secondaryRegion")] %>%
  rename(continent = secondaryRegion) %>%
  mutate(continent = gsub("Netherlands", "AFRICA", continent) ) %>%
  as.data.frame()

topAnnoColors = createColorListFromDf(topAnno_df)

topAnnoColors[["continent"]] = c("AFRICA"  =   "#E69F00",
                                 "ASIA" =      "#F0E442",
                                 "OCEANIA"  =  "#F748A5",
                                 "S_AMERICA" = "#0072B2",
                                 "Netherlands"="black")

topAnnoColors[["chrom"]] = c("11" = "#008DF9", "13" = "#A40122")



topAnno = HeatmapAnnotation(
  df = topAnno_df,
  col = topAnnoColors,
  show_legend = F,
  gp = gpar(col = "black")
  # the annotation direction doesn't appear to work right now
  # annotation_legend_param = list(
  #   chrom = list(legend_direction = "horizontal", direction = "horizontal"),
  #   continent = list(legend_direction = "horizontal", direction = "horizontal")
  # )
)

sideAnno = rowAnnotation(
  df = topAnno_df,
  col = topAnnoColors,
  show_legend = F,
  gp = gpar(col = "black")
  # ,
  # annotation_legend_param = list(
  #   chrom = list(legend_direction = "horizontal", direction = "horizontal"),
  #   continent = list(legend_direction = "horizontal", direction = "horizontal")
  # )
)

colnames(allByAllCompVarCount_select_mat_noLabels) = gsub("3D7", "**3D7", colnames(allByAllCompVarCount_select_mat_noLabels))
rownames(allByAllCompVarCount_select_mat_noLabels) = gsub("3D7", "**3D7", rownames(allByAllCompVarCount_select_mat_noLabels))

hc = hclust(dist(allByAllCompVarCount_select_mat_noLabels))
allByAllCompVarCount_select_mat_heatmap = Heatmap(
  allByAllCompVarCount_select_mat_noLabels,
  rect_gp = gpar(type = "none"),
  column_dend_side = "bottom",
  cell_fun = function(j, i, x, y, w, h, fill) {
    if (as.numeric(x) <= 1 - as.numeric(y) + 1e-6) {
      grid.rect(x, y, w, h, gp = gpar(fill = fill, col = fill))
    }
  },
  # cluster_rows = hc,
  # cluster_columns = hc,
  row_names_side = "left",
  name = "Number of \nVariants",
  col = col_fun,
  bottom_annotation = topAnno,
  left_annotation = sideAnno,
  row_dend_width = unit(5, "cm"),
  column_dend_height = unit(5, "cm"),
  show_column_dend = F,
  show_heatmap_legend = F,
  na_col = "grey80",
  # ,
  # heatmap_legend_param = list(
  #   direction = "horizontal"
  # )
)

chrom_lgd = Legend(labels = sort(unique(topAnno_df$chrom)), title = "chrom", legend_gp = gpar(fill = topAnnoColors[["chrom"]][sort(unique(topAnno_df$chrom))]))
continent_lgd = Legend(labels = sort(unique(topAnno_df$continent)), title = "continent", legend_gp = gpar(fill = topAnnoColors[["continent"]][sort(unique(topAnno_df$continent))]))
heatmap_lgd = Legend(col_fun = col_fun, title = "Number of \nVariants")

Code

draw(allByAllCompVarCount_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left")
draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd,  direction = "horizontal"), x = unit(0.80, "npc"), y = unit(0.85, "npc"))

Code

pdf("sharedRegion_pacbioAssemblies_varCount.pdf", width = 7.5, height = 5, useDingbats = F)
draw(allByAllCompVarCount_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left")
draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd,  direction = "horizontal"), x = unit(0.80, "npc"), y = unit(0.85, "npc"))
dev.off()

quartz_off_screen
                2

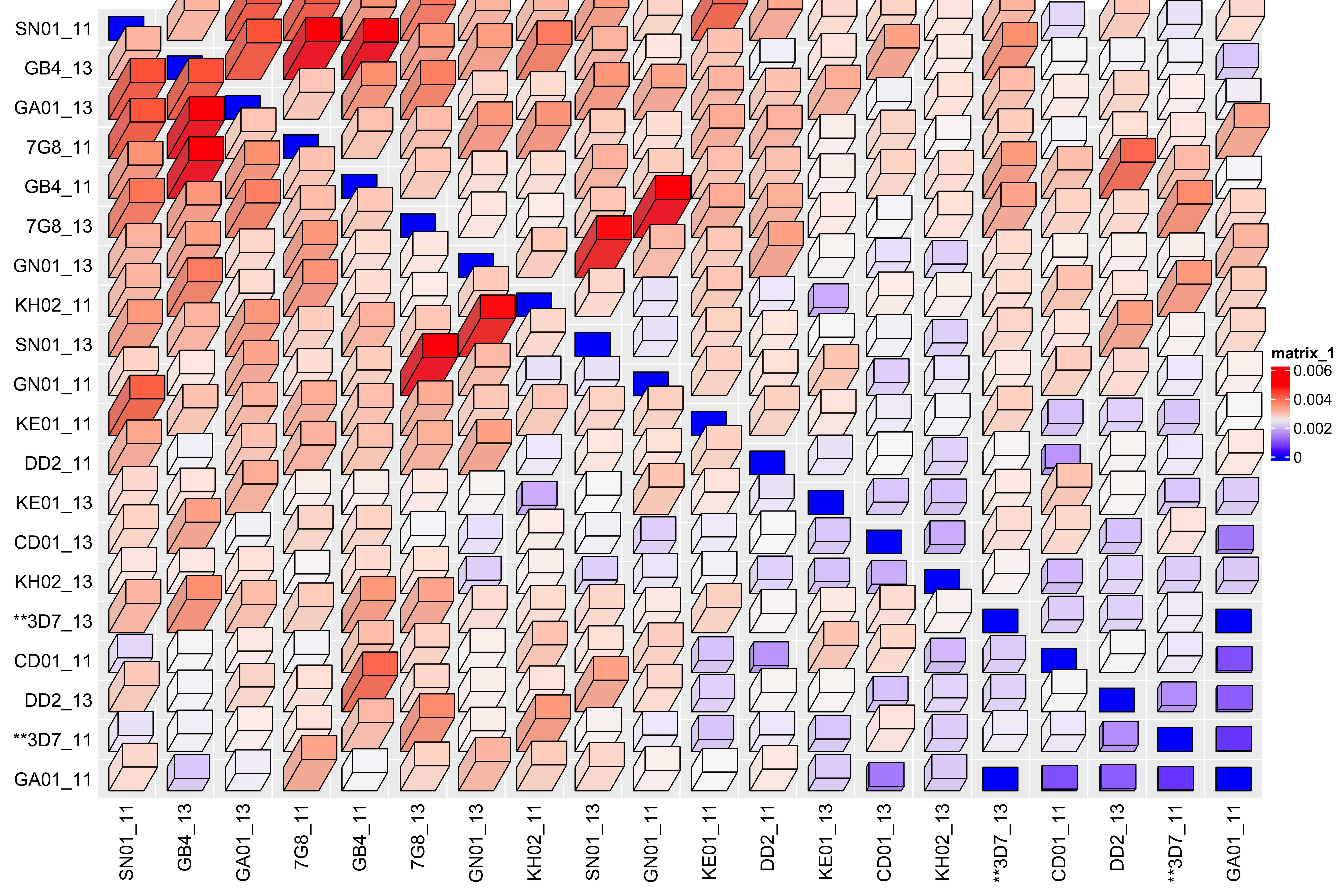

Code

allByAllComp_select_mat_noLabels_mod = allByAllComp_select_mat_noLabels
allByAllComp_select_mat_noLabels_mod = allByAllComp_select_mat_noLabels_mod - min(allByAllComp_select_mat_noLabels_mod, na.rm = T)
allByAllComp_select_mat_noLabels_mod[is.na(allByAllComp_select_mat_noLabels_mod)] = 0
Heatmap3D(allByAllComp_select_mat_noLabels_mod - min(allByAllComp_select_mat_noLabels_mod))

Chromosome vs chromosome percent identity

Comparison of the chromosomes vs between chromosomes, for chromosome 11 and 13 they are just as closely related to the same chromosome as between the chromosomes, unlike the chr05 and chr07 chromosomes rRNA loci where the same chromosomes are more closely related than between chromosomes. Could be suggestive that chr11 and chr13 are inter-combining more than chr05 and chr07

Code

allByAllComp_mod = allByAllComp %>%
  group_by(ReadId, OtherReadId) %>%
  mutate(read1_chrom = ifelse(grepl("_11", ReadId), "chrom11", "chrom13"))%>%
  mutate(read2_chrom = ifelse(grepl("_11", OtherReadId), "chrom11", "chrom13")) %>%
  mutate(comparisonCategory = paste0(sort(c(read1_chrom, read2_chrom)), collapse = "--") ) %>%
  ungroup()

ggplot(allByAllComp_mod) +
  geom_boxplot(aes(x = comparisonCategory, y = perId)) +
  sofonias_theme +
  #scale_y_continuous(limits = c(min(allByAllComp_mod$perId), 1)) +
  scale_y_continuous(limits = c(0.990, 1))

Writing out region

Code

outBed = tibble(
  `#chrom` = c("Pf3D7_11_v3", "Pf3D7_13_v3"),
  start = c(1918029, 2792022),
  end = c(1933390, 2807397),
  name = c("Pf3D7_11_v3-1918029-1918124--Pf3D7_11_v3-1933291-1933390__Pf3D7_13_v3-2792022-2792117--Pf3D7_13_v3-2807298-2807397",
           "Pf3D7_11_v3-1918029-1918124--Pf3D7_11_v3-1933291-1933390__Pf3D7_13_v3-2792022-2792117--Pf3D7_13_v3-2807298-2807397")
)

outBed = outBed %>%
  mutate(len = end -start) %>%
  mutate(strand = "+")

create_dt(outBed)

Code

write_tsv(outBed, "investigatingChrom11Chrom13/shared_11_13_region.bed")

References

Otto, Thomas D, Ulrike Böhme, Mandy Sanders, Adam Reid, Ellen I Bruske, Craig W Duffy, Pete C Bull, et al. 2018. “Long Read Assemblies of Geographically Dispersed Plasmodium Falciparum Isolates Reveal Highly Structured Subtelomeres.” Wellcome Open Res 3 (May): 52.

--- title: "Characterizing Duplicated Region" --- ```{r setup, echo=FALSE, message=FALSE} source("../../common.R") ``` ## Investigating shared region within pacbio assemblies[@Otto2018-bb] ```{bash, eval = F} for x in /tank/data/genomes/plasmodium/genomes/pf/genomes/*.fasta; do elucidator splitFile --fasta ${x} --overWrite --trimAtWhiteSpace ; done; ``` These strains have complete chromosome 11s and 13s Pf3D7 Pf7G8 PfCD01 PfDd2 PfGA01 PfGB4 PfGN01 PfKE01 PfKH02 PfSN01 ```{r} strains = c("Pf3D7","Pf7G8","PfCD01","PfDd2","PfGA01","PfGB4","PfGN01","PfKE01","PfKH02","PfSN01") cat(strains, sep = "\n", file = "stableStrains.txt") strainsDf = tibble(strain = strains) strainsDf = strainsDf %>% mutate(chrom11 = paste0(strain, "_11*.fasta")) %>% mutate(chrom13 = paste0(strain, "_13*.fasta")) mvCmd = paste0("mv ", paste0(strainsDf$chrom11, collapse = " "), " ", paste0(strainsDf$chrom13, collapse = " "), " combinedChrom11_13/") cat(mvCmd) ``` ```{bash, eval = F} elucidator profileSharedKmerBlocks --seq Pf3D7_11_v3.fasta --dout chroms11_13_klen31 --kLen 31 --seqsDir ./ --fasta Pf3D7_11_v3.fasta --overWriteDir cd chroms11_13_klen31 elucidator bedCoordSort --bed perfect.bed | elucidator extendBedRegions --left 5 --right 5 --bed STDIN | bedtools merge | elucidator bed3ToBed6 --bed STDIN | elucidator filterBedRecordsByLength --bed STDIN --minLen 65 | elucidator bedGetIntersectingGenesInGff --gff /work/nhathawa/genomes/pfGenomes_updated/info//gff/Pf3D7.gff --extraAttributes description --overWrite --bed STDIN --out perfectlyShared_minlen65.bed elucidator getFastaWithBed --twoBit /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.2bit --overWrite --bed perfectlyShared_minlen65.bed --out perfectlyShared_minlen65 elucidator extractRefSeqsFromGenomes --genomeDir /tank/data/genomes/plasmodium/genomes/pf/genomes/ --gffDir /tank/data/genomes/plasmodium/genomes/pf/info/gff/ --primaryGenome Pf3D7 --bed perfectlyShared_minlen65.bed --outputDir extractedRefSeqs --identity 95 --coverage 95 --numThreads 15 ``` ```{r} perfectlyShared_minlen65_regions = readr::read_tsv("combinedChrom11_13/chroms11_13_klen31/perfectlyShared_minlen65.bed", col_names = F) perfectlyShared_minlen65_regions = perfectlyShared_minlen65_regions %>% mutate(X4 = paste0(X4, "-for")) allRegions = tibble() for(region in perfectlyShared_minlen65_regions$X4){ for(strain in strains){ fnp= paste0("combinedChrom11_13/chroms11_13_klen31/extractedRefSeqs/", region, "/beds/", strain, "_region.bed") if(file.exists(fnp)){ currentRegion = readr::read_tsv(fnp, col_names = F, show_col_types = F) currentRegion$X4 = region currentRegion$strain = strain allRegions = bind_rows( allRegions, currentRegion ) } } } allRegions_sum = allRegions %>% group_by(strain, X1) %>% summarise(start = min(X2), end = max(X3)) %>% filter(grepl("_1[13]", X1)) %>% rename(`#chrom` = X1) %>% mutate(start = start - 5000) %>% mutate(end = end + 5000) %>% mutate(name = paste0(`#chrom`, "-", start, "-", end), len = end - start, strand = "+") for(strainName in strains){ allRegions_sum_byStrain = allRegions_sum %>% filter(strain == strainName) allRegions_sum_byStrain = allRegions_sum_byStrain %>% group_by() %>% select(-strain) write_tsv(allRegions_sum_byStrain, paste0("combinedChrom11_13/chroms11_13_regions/", strainName, ".bed")) } allRegions_sum_exact = allRegions %>% group_by(strain, X1) %>% summarise(start = min(X2), end = max(X3)) %>% filter(grepl("_1[13]", X1)) %>% rename(`#chrom` = X1) %>% mutate(start = start) %>% mutate(end = end) %>% mutate(name = paste0(`#chrom`, "-", start, "-", end), len = end - start, strand = "+") for(strainName in strains){ allRegions_sum_byStrain = allRegions_sum_exact %>% filter(strain == strainName) allRegions_sum_byStrain = allRegions_sum_byStrain %>% group_by() %>% select(-strain) write_tsv(allRegions_sum_byStrain, paste0("combinedChrom11_13/chroms11_13_regions_exact/", strainName, ".bed")) } ``` ```{bash, eval = F} cd chroms11_13_regions_exact for x in *.bed; do elucidator getFastaWithBed --bed $x --twoBit /tank/data/genomes/plasmodium/genomes/pf/genomes/${x%%.bed}.2bit --overWrite --out ${x%%.bed}.fasta ; done; mkdir sequences cd sequences for x in ../*.fasta; do elucidator splitFile --fasta $x ; done; elucidator profileSharedKmerBlocks --seq Pf3D7_11_v3-1913023-1938396.fasta --dout chroms11_13_klen31 --kLen 31 --seqsDir ./ --fasta Pf3D7_11_v3-1913023-1938396.fasta --overWriteDir ``` ```{bash, eval = F} cd chroms11_13_regions mkdir allSequences for x in Pf*.bed; do elucidator getFastaWithBed --bed $x --twoBit /tank/data/genomes/plasmodium/genomes/pf/genomes/${x%%.bed}.2bit --overWrite --out ${x%%.bed}.fasta ; done; cat *.fasta > allSequences/all.fasta cat Pf*.bed > all.bed cd allSequences muscle -in all.fasta -out aln_all.fasta elucidator trimToLen --fasta aln_all.fasta --length 21945 --overWrite --out trimmed_to_21945_aln_all.fasta elucidator trimFront --fasta trimmed_to_21945_aln_all.fasta --forwardBases 21845 --overWrite --out trimmedFrom_21845_trimmed_to_21945_aln_all.fasta elucidator sortReads --fasta trimmedFrom_21845_trimmed_to_21945_aln_all.fasta --removeGaps --overWrite elucidator determineRegionLastz --individual --fasta sorted_trimmedFrom_21845_trimmed_to_21945_aln_all.fasta --genome /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.2bit -out sorted_trimmedFrom_21845_trimmed_to_21945_aln_all.bed elucidator trimToLen --fasta aln_all.fasta --length 6051 --overWrite --out trimmed_to_6051_aln_all.fasta elucidator trimFront --fasta trimmed_to_6051_aln_all.fasta --forwardBases 5951 --overWrite --out trimmedFrom_5951_trimmed_to_6051_aln_all.fasta elucidator sortReads --fasta trimmedFrom_5951_trimmed_to_6051_aln_all.fasta --removeGaps --overWrite elucidator determineRegionLastz --individual --fasta sorted_trimmedFrom_5951_trimmed_to_6051_aln_all.fasta --genome /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.2bit --overWrite --out sorted_trimmedFrom_5951_trimmed_to_6051_aln_all.bed elucidatorlab getMalnConservedness --fasta aln_all.fasta --blockSize 10 --overWrite --out aln_all_conserved.tab.txt elucidatorlab getAlnPosToRealPosTable --fasta aln_all.fasta --overWrite --out aln_all_position_table.tab.txt ``` ## Beginning of the section Pf3D7_11_v3-1918029-1918124--Pf3D7_13_v3-2792022-2792117 ::: column-screen-inset-shaded ![](figures/Pf3D7_11_v3-1918029-1918124--Pf3D7_13_v3-2792022-2792117.png){width=70% fig-align="center"} ::: ## Middle Variation in the middle, does not appear to be chromosome specific (though could have been a difference in assembly) ::: column-screen-inset-shaded ![](figures/variation_in_middle.png){width=70% fig-align="center"} ::: ## End of the section Pf3D7_11_v3-1933291-1933390--Pf3D7_13_v3-2807298-2807397 ::: column-screen-inset-shaded ![](figures/Pf3D7_11_v3-1933291-1933390--Pf3D7_13_v3-2807298-2807397.png){width=70% fig-align="center"} ::: The region is ~15,360 kp long, so could be hard to get through even with long reads ## Conserved score Plotting the percent conserved per position across the region including the before and after shared segment, all strains appear to start and end at the same position ```{r} conservedPosTab = readr::read_tsv("combinedChrom11_13/chroms11_13_regions/allSequences/aln_all_position_table.tab.txt") %>% filter("Pf3D7_11_v3-1913023-1938396" == name) %>% rename(pos = alignPosition) conservedMulti = readr::read_tsv("combinedChrom11_13/chroms11_13_regions/allSequences/aln_all_conserved.tab.txt") conservedMulti_max = conservedMulti %>% group_by(pos) %>% filter(frac == max(frac)) %>% filter("----------" != block ) %>% left_join(conservedPosTab) %>% filter(!is.na(name)) %>% filter() blockSize = 30 conservedMulti_max_rounding = tibble(rawPos = 1:(nrow(conservedMulti_max) - blockSize), realPosition = numeric(nrow(conservedMulti_max) - blockSize), rounded = numeric(nrow(conservedMulti_max) - blockSize)) for(row in 1:(nrow(conservedMulti_max) - blockSize)){ round = mean(conservedMulti_max$frac[row:(row+blockSize)]) if(round > 1){ print(row) print(blockSize) print(conservedMulti_max$frac[row:(row+blockSize)]) print(round) stop() } minPos = min(conservedMulti_max$realPosition[row:(row+blockSize)]) conservedMulti_max_rounding$realPosition[row] = minPos conservedMulti_max_rounding$rounded[row] = round } conservedMulti_max_rounding_filt = conservedMulti_max_rounding %>% group_by(realPosition) %>% mutate(id = row_number()) %>% filter(id == 1) %>% group_by() ``` ```{r} #| fig-column: screen-inset-shaded ggplot(conservedMulti_max_rounding_filt) + geom_bar(aes(x = realPosition, y = rounded), stat = "identity")+ sofonias_theme ``` ```{bash, eval = F} cd chroms11_13_regions_exact cat *.fasta > all.fasta elucidator compareAllByAll --fasta all.fasta --verbose --numThreads 12 elucidator createSharedSubSegmentsFromRefSeqs --fasta out.fasta --minimumKlen 12 --dout sharedSubSeqs_occurence6 --filterRegionsWithinRegions --refSeqName Pf3D7_11_v3-1918023-1933396 --overWriteDir --genome /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.fasta --minSubRegionLen 150 --maxSubRegionLen 300 --minBlockRegionLen 30 --doNotCollapseLowFreqNodes --correctionOccurenceCutOff 6 --includeFromSubRegionSize 30 muscle -in all.fasta -out aln_all.fasta FastTree -nt aln_all.fasta > aln_all.nwk elucidatorlab getMalnConservedness --fasta aln_all.fasta --blockSize 10 --overWrite --out aln_all_conserved.tab.txt elucidatorlab getAlnPosToRealPosTable --fasta aln_all.fasta --overWrite --out aln_all_position_table.tab.txt elucidator multipleAlnProteinToPcaInput --fasta aln_all.fasta --overWrite --out pcaMat_aln_all.fasta elucidator runTRF --fasta all.fasta --overWriteDir --dout all_trfOutput --supplement --genomicLocation ../all.bed elucidator bedFilterRegionsCompletelyInOther --bed all_trfOutput/genomic_combined.bed --intersectWithBed all_trfOutput/genomic_combined.bed | elucidator bedAddSmartIDForPlotting --bed STDIN --out all_trfOutput/filtered_genomic_combined.bed --overWrite elucidator countBasesPerPosition --fasta aln_all.fasta --overWrite --out aln_all_baseCounts.tab.txt #elucidator createSharedSubSegmentsFromRefSeqs --fasta out.fasta --minimumKlen 12 --dout sharedSubSeqs_occurence6 --filterRegionsWithinRegions --refSeqName Pf3D7_11_v3-1918023-1933396 --overWriteDir --genome /tank/data/genomes/plasmodium/genomes/pf/genomes/Pf3D7.fasta --minSubRegionLen 150 --maxSubRegionLen 300 --minBlockRegionLen 30 --doNotCollapseLowFreqNodes --correctionOccurenceCutOff 6 --includeFromSubRegionSize 30 #cd sharedSubSeqs_occurence6/sharedLocs #elucidator bedGetIntersectingGenesInGff --gff /tank/data/genomes/plasmodium/genomes/pf/info/gff/Pf3D7.gff --extraAttributes description --overWrite --bed 0_ref_sharedLocs_genomic.bed --out 0_ref_sharedLocs_genomic_withGeneInfo.bed ``` ## Comparing chromsome 11 and 13 segments The chromosome 11 and 13 regions appear to be extremely closely related to each other and there is no clear variation specific to chromosome 11 or 13 ```{r} library(ggtree) tree = ape::read.tree("combinedChrom11_13/chroms11_13_regions_exact/sequences/aln_all.nwk") tree$tip.label = gsub("_v3", "", gsub("-.*", "", tree$tip.label)) tipDf = tibble(seq = tree$tip.label) %>% mutate(chrom = ifelse(grepl("_11", seq), "chrom11", "chrom13")) tipDf_chrom11 = tipDf %>% filter(chrom == "chrom11") tipDf_chrom13 = tipDf %>% filter(chrom == "chrom13") groups = list(chrom11 = tipDf_chrom11$seq, chrom13 = tipDf_chrom13$seq) tree = groupOTU(tree, groups) sharedRegion_pacbioAssembliesPlot = ggtree::ggtree(tree, show.legend = FALSE) + hexpand(.1) + geom_tiplab(aes(color = group), show.legend = FALSE) + scale_color_manual(values = c("#005AC8", "#AA0A3C")) ``` ```{r} #| fig-column: screen-inset-shaded #| fig-height: 5 #| fig-width: 10 print(sharedRegion_pacbioAssembliesPlot) ``` ```{r} pdf("sharedRegion_pacbioAssemblies.pdf", width = 7.5, height = 7.5/2, useDingbats = F) print(sharedRegion_pacbioAssembliesPlot) dev.off() ``` ### Comparing Percent Identity All segments between strains are more >99% related to each other ```{r} allByAllComp = readr::read_tsv("combinedChrom11_13/chroms11_13_regions_exact/sequences/out.tab.txt") ``` ```{r, eval=FALSE, echo=FALSE} #| fig-column: screen-inset-shaded ggplot(allByAllComp) + geom_tile(aes(x = OtherReadId , y = ReadId, fill = perId)) + geom_text(aes(x = OtherReadId , y = ReadId, label = round(perId*100,2))) + sofonias_theme_xRotate + scale_y_discrete(position = "right") + scale_fill_gradient2(limits = c(min(allByAllComp$perId),1), midpoint = min(allByAllComp$perId) + (max(allByAllComp$perId) - min(allByAllComp$perId))/2 ) ``` ```{r} allByAllComp_select = allByAllComp %>% select(OtherReadId, ReadId, perId) %>% spread(ReadId, perId) addRow = matrix(c(colnames(allByAllComp_select)[2], rep(NA, ncol(allByAllComp_select) - 1)), nrow = 1) colnames(addRow) = colnames(allByAllComp_select) addRow = as_tibble(addRow) for(col in 2:ncol(addRow)){ addRow[,col] = as.numeric(addRow[,col]) } allByAllComp_select = as_tibble(addRow) %>% bind_rows(allByAllComp_select) allByAllComp_select_mat = as.matrix(allByAllComp_select[,2:ncol(allByAllComp_select)]) rownames(allByAllComp_select_mat) = allByAllComp_select$OtherReadId allByAllComp_select_mat = as.matrix(as.dist(allByAllComp_select_mat)) allByAllComp_select_mat[0 == allByAllComp_select_mat] = NA ``` ```{r} library(circlize) meta = readr::read_tsv("../../meta/metadata/meta.tab.txt") %>% mutate(country = gsub("South East Asia - East", "Cambodia", country)) metaByBioSample = readr::read_tsv("../../meta/metadata/metaByBioSample.tab.txt") %>% mutate(country = gsub("South East Asia - East", "Cambodia", country)) allByAllComp_select_mat_noLabels = allByAllComp_select_mat # rownames(allByAllComp_select_mat_noLabels) = NULL # colnames(allByAllComp_select_mat_noLabels) = NULL rownames(allByAllComp_select_mat_noLabels) = gsub("Dd2", "DD2", gsub("Pf", "", gsub("_v3", "", gsub("-.*", "", rownames(allByAllComp_select_mat_noLabels))))) colnames(allByAllComp_select_mat_noLabels) = gsub("Dd2", "DD2", gsub("Pf", "", gsub("_v3", "", gsub("-.*", "", colnames(allByAllComp_select_mat_noLabels))))) col_fun = colorRamp2(c( min(allByAllComp_select_mat_noLabels, na.rm = T), min(allByAllComp_select_mat_noLabels, na.rm = T) + ( max(allByAllComp_select_mat_noLabels, na.rm = T) - min(allByAllComp_select_mat_noLabels, na.rm = T) ) / 2, max(allByAllComp_select_mat_noLabels, na.rm = T) ), c("#4575b4", "#ffffbf", "#d73027")) #c("#ffeda0", "#feb24c", "#f03b20")) topAnnoDat = tibble(name = colnames(allByAllComp_select_mat)) %>% mutate(sampchrom = gsub("_v3", "", gsub("-.*", "", name))) %>% mutate(sample = gsub("Dd2", "DD2", gsub("_.*", "", gsub("Pf", "", sampchrom)))) %>% mutate(chrom = gsub(".*_", "", sampchrom)) %>% left_join(metaByBioSample %>% select(sample, secondaryRegion)) topAnno_df = topAnnoDat[,c("chrom", "secondaryRegion")] %>% rename(continent = secondaryRegion) %>% mutate(continent = gsub("Netherlands", "AFRICA", continent) ) %>% as.data.frame() topAnnoColors = createColorListFromDf(topAnno_df) topAnnoColors[["continent"]] = c("AFRICA" = "#E69F00", "ASIA" = "#F0E442", "OCEANIA" = "#F748A5", "S_AMERICA" = "#0072B2", "Netherlands"="black") topAnnoColors[["chrom"]] = c("11" = "#008DF9", "13" = "#A40122") topAnno = HeatmapAnnotation( df = topAnno_df, col = topAnnoColors, show_legend = F, gp = gpar(col = "black") # the annotation direction doesn't appear to work right now # annotation_legend_param = list( # chrom = list(legend_direction = "horizontal", direction = "horizontal"), # continent = list(legend_direction = "horizontal", direction = "horizontal") # ) ) sideAnno = rowAnnotation( df = topAnno_df, col = topAnnoColors, show_legend = F, gp = gpar(col = "black") # , # annotation_legend_param = list( # chrom = list(legend_direction = "horizontal", direction = "horizontal"), # continent = list(legend_direction = "horizontal", direction = "horizontal") # ) ) colnames(allByAllComp_select_mat_noLabels) = gsub("3D7", "**3D7", colnames(allByAllComp_select_mat_noLabels)) rownames(allByAllComp_select_mat_noLabels) = gsub("3D7", "**3D7", rownames(allByAllComp_select_mat_noLabels)) hc = hclust(dist(allByAllComp_select_mat_noLabels)) allByAllComp_select_mat_heatmap = Heatmap( allByAllComp_select_mat_noLabels, rect_gp = gpar(type = "none"), column_dend_side = "bottom", cell_fun = function(j, i, x, y, w, h, fill) { if (as.numeric(x) <= 1 - as.numeric(y) + 1e-6) { grid.rect(x, y, w, h, gp = gpar(fill = fill, col = fill)) } }, # cluster_rows = hc, # cluster_columns = hc, row_names_side = "left", name = "%Identity", col = col_fun, bottom_annotation = topAnno, left_annotation = sideAnno, row_dend_width = unit(5, "cm"), column_dend_height = unit(5, "cm"), show_column_dend = F, show_heatmap_legend = F # , # heatmap_legend_param = list( # direction = "horizontal" # ) ) chrom_lgd = Legend(labels = sort(unique(topAnno_df$chrom)), title = "chrom", legend_gp = gpar(fill = topAnnoColors[["chrom"]][sort(unique(topAnno_df$chrom))])) continent_lgd = Legend(labels = sort(unique(topAnno_df$continent)), title = "continent", legend_gp = gpar(fill = topAnnoColors[["continent"]][sort(unique(topAnno_df$continent))])) heatmap_lgd = Legend(col_fun = col_fun, title = "%Identity") ``` ```{r} #| fig-column: screen-inset-shaded draw(allByAllComp_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left") draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd, direction = "horizontal"), x = unit(0.775, "npc"), y = unit(0.85, "npc")) ``` ```{r} pdf("sharedRegion_pacbioAssemblies_percentIdentity.pdf", width = 7.5, height = 5, useDingbats = F) draw(allByAllComp_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left") draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd, direction = "horizontal"), x = unit(0.775, "npc"), y = unit(0.85, "npc")) dev.off() ``` ### Comparing Number of variants ```{r} allByAllCompVarCount_select = allByAllComp %>% select(OtherReadId, ReadId, totalDiffs) %>% spread(ReadId, totalDiffs) addRow = matrix(c(colnames(allByAllCompVarCount_select)[2], rep(NA, ncol(allByAllCompVarCount_select) - 1)), nrow = 1) colnames(addRow) = colnames(allByAllCompVarCount_select) addRow = as_tibble(addRow) for(col in 2:ncol(addRow)){ addRow[,col] = as.numeric(addRow[,col]) } allByAllCompVarCount_select = as_tibble(addRow) %>% bind_rows(allByAllCompVarCount_select) allByAllCompVarCount_select_mat = as.matrix(allByAllCompVarCount_select[,2:ncol(allByAllCompVarCount_select)]) rownames(allByAllCompVarCount_select_mat) = allByAllCompVarCount_select$OtherReadId allByAllCompVarCount_select_mat = as.matrix(as.dist(allByAllCompVarCount_select_mat)) allByAllCompVarCount_select_mat[0 == allByAllCompVarCount_select_mat] = NA ``` ```{r} library(circlize) meta = readr::read_tsv("../../meta/metadata//meta.tab.txt") %>% mutate(country = gsub("South East Asia - East", "Cambodia", country)) metaByBioSample = readr::read_tsv("../../meta/metadata/metaByBioSample.tab.txt") %>% mutate(country = gsub("South East Asia - East", "Cambodia", country)) allByAllCompVarCount_select_mat_noLabels = allByAllCompVarCount_select_mat # rownames(allByAllCompVarCount_select_mat_noLabels) = NULL # colnames(allByAllCompVarCount_select_mat_noLabels) = NULL rownames(allByAllCompVarCount_select_mat_noLabels) = gsub("Dd2", "DD2", gsub("Pf", "", gsub("_v3", "", gsub("-.*", "", rownames(allByAllCompVarCount_select_mat_noLabels))))) colnames(allByAllCompVarCount_select_mat_noLabels) = gsub("Dd2", "DD2", gsub("Pf", "", gsub("_v3", "", gsub("-.*", "", colnames(allByAllCompVarCount_select_mat_noLabels))))) col_fun = colorRamp2(c( min(allByAllCompVarCount_select_mat_noLabels, na.rm = T), min(allByAllCompVarCount_select_mat_noLabels, na.rm = T) + ( max(allByAllCompVarCount_select_mat_noLabels, na.rm = T) - min(allByAllCompVarCount_select_mat_noLabels, na.rm = T) ) / 2, max(allByAllCompVarCount_select_mat_noLabels, na.rm = T) ), c("#006837", "#ffffbf", "#d73027")) #c("#4575b4", "#ffffbf", "#d73027")) #c("#ffeda0", "#feb24c", "#f03b20")) topAnnoDat = tibble(name = colnames(allByAllCompVarCount_select_mat)) %>% mutate(sampchrom = gsub("_v3", "", gsub("-.*", "", name))) %>% mutate(sample = gsub("Dd2", "DD2", gsub("_.*", "", gsub("Pf", "", sampchrom)))) %>% mutate(chrom = gsub(".*_", "", sampchrom)) %>% left_join(metaByBioSample %>% select(sample, secondaryRegion)) topAnno_df = topAnnoDat[,c("chrom", "secondaryRegion")] %>% rename(continent = secondaryRegion) %>% mutate(continent = gsub("Netherlands", "AFRICA", continent) ) %>% as.data.frame() topAnnoColors = createColorListFromDf(topAnno_df) topAnnoColors[["continent"]] = c("AFRICA" = "#E69F00", "ASIA" = "#F0E442", "OCEANIA" = "#F748A5", "S_AMERICA" = "#0072B2", "Netherlands"="black") topAnnoColors[["chrom"]] = c("11" = "#008DF9", "13" = "#A40122") topAnno = HeatmapAnnotation( df = topAnno_df, col = topAnnoColors, show_legend = F, gp = gpar(col = "black") # the annotation direction doesn't appear to work right now # annotation_legend_param = list( # chrom = list(legend_direction = "horizontal", direction = "horizontal"), # continent = list(legend_direction = "horizontal", direction = "horizontal") # ) ) sideAnno = rowAnnotation( df = topAnno_df, col = topAnnoColors, show_legend = F, gp = gpar(col = "black") # , # annotation_legend_param = list( # chrom = list(legend_direction = "horizontal", direction = "horizontal"), # continent = list(legend_direction = "horizontal", direction = "horizontal") # ) ) colnames(allByAllCompVarCount_select_mat_noLabels) = gsub("3D7", "**3D7", colnames(allByAllCompVarCount_select_mat_noLabels)) rownames(allByAllCompVarCount_select_mat_noLabels) = gsub("3D7", "**3D7", rownames(allByAllCompVarCount_select_mat_noLabels)) hc = hclust(dist(allByAllCompVarCount_select_mat_noLabels)) allByAllCompVarCount_select_mat_heatmap = Heatmap( allByAllCompVarCount_select_mat_noLabels, rect_gp = gpar(type = "none"), column_dend_side = "bottom", cell_fun = function(j, i, x, y, w, h, fill) { if (as.numeric(x) <= 1 - as.numeric(y) + 1e-6) { grid.rect(x, y, w, h, gp = gpar(fill = fill, col = fill)) } }, # cluster_rows = hc, # cluster_columns = hc, row_names_side = "left", name = "Number of \nVariants", col = col_fun, bottom_annotation = topAnno, left_annotation = sideAnno, row_dend_width = unit(5, "cm"), column_dend_height = unit(5, "cm"), show_column_dend = F, show_heatmap_legend = F, na_col = "grey80", # , # heatmap_legend_param = list( # direction = "horizontal" # ) ) chrom_lgd = Legend(labels = sort(unique(topAnno_df$chrom)), title = "chrom", legend_gp = gpar(fill = topAnnoColors[["chrom"]][sort(unique(topAnno_df$chrom))])) continent_lgd = Legend(labels = sort(unique(topAnno_df$continent)), title = "continent", legend_gp = gpar(fill = topAnnoColors[["continent"]][sort(unique(topAnno_df$continent))])) heatmap_lgd = Legend(col_fun = col_fun, title = "Number of \nVariants") ``` ```{r} #| fig-column: screen-inset-shaded draw(allByAllCompVarCount_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left") draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd, direction = "horizontal"), x = unit(0.80, "npc"), y = unit(0.85, "npc")) ``` ```{r} pdf("sharedRegion_pacbioAssemblies_varCount.pdf", width = 7.5, height = 5, useDingbats = F) draw(allByAllCompVarCount_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left") draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd, direction = "horizontal"), x = unit(0.80, "npc"), y = unit(0.85, "npc")) dev.off() ``` ```{r, eval = F, echo=F} library(gridExtra) conservedInfo_between_11_and_13_sharedRegion = readr::read_tsv("../../MappingOutSurroundingRegions/conservedInfo_between_11_and_13_sharedRegion.tsv") conservedInfo_current_plot = ggplot(conservedInfo_between_11_and_13_sharedRegion) + geom_segment( aes( x = chrom1Pos_start, xend = crhom1Pos_end - 1, y = chrom2Pos, yend = chrom2Pos + size - 1 ), linewidth = 2.5, color = "black" ) + geom_rect( ymin = conservedInfo_between_11_and_13_sharedRegion$chrom2_section_start[1], ymax = conservedInfo_between_11_and_13_sharedRegion$chrom2_section_start[1] + conservedInfo_between_11_and_13_sharedRegion$chrom2_section_len[1], xmin = conservedInfo_between_11_and_13_sharedRegion$chrom1_section_start[1] - conservedInfo_between_11_and_13_sharedRegion$chrom1_section_len[1] * 0.1, xmax = conservedInfo_between_11_and_13_sharedRegion$chrom1_section_start[1] - conservedInfo_between_11_and_13_sharedRegion$chrom1_section_len[1] * 0.001, fill = "grey81") + geom_rect( ymax = conservedInfo_between_11_and_13_sharedRegion$chrom2_section_start[1] - conservedInfo_between_11_and_13_sharedRegion$chrom2_section_len[1] * 0.001, ymin = conservedInfo_between_11_and_13_sharedRegion$chrom2_section_start[1] - conservedInfo_between_11_and_13_sharedRegion$chrom2_section_len[1] * 0.1, xmin = conservedInfo_between_11_and_13_sharedRegion$chrom1_section_start[1], xmax = conservedInfo_between_11_and_13_sharedRegion$chrom1_section_start[1] + conservedInfo_between_11_and_13_sharedRegion$chrom1_section_len[1], fill = "grey81") + geom_rect(data = pf3d7Genes_chrom1, aes(xmin = col.1, xmax = col.2, ymax = conservedInfo_between_11_and_13_sharedRegion$chrom2_section_start[1] - conservedInfo_between_11_and_13_sharedRegion$chrom2_section_len[1] * 0.001, ymin = conservedInfo_between_11_and_13_sharedRegion$chrom2_section_start[1] - conservedInfo_between_11_and_13_sharedRegion$chrom2_section_len[1] * 0.1, fill = description)) + geom_rect(data = pf3d7Genes_chrom2, aes(ymin = col.1, ymax = col.2, xmax = conservedInfo_between_11_and_13_sharedRegion$chrom1_section_start[1] - conservedInfo_between_11_and_13_sharedRegion$chrom1_section_len[1] * 0.001, xmin = conservedInfo_between_11_and_13_sharedRegion$chrom1_section_start[1] - conservedInfo_between_11_and_13_sharedRegion$chrom1_section_len[1] * 0.1, fill = description)) + labs(title = "", x = "3D7 Chr13-2792021-2807295 (bp=15,274)", y = "3D7 Chr11-1918028-1933288 (bp=15,260)", fill = "") + sofonias_theme + coord_equal() + # scale_fill_tableau() + scale_fill_manual(values = c("#2271B2", "#F748A5", "#3DB7E9", "#D55E00")) + guides(fill=guide_legend(ncol = 1,byrow=TRUE)) + theme(legend.position = c(0.3, 0.7), panel.border = element_blank(), legend.background = element_blank(), legend.box.background = element_rect(colour = "black")) grobHeatmap = grid.grabExpr({ draw(allByAllComp_select_mat_heatmap, background = "transparent", merge_legend = TRUE, heatmap_legend_side = "bottom", annotation_legend_side = "left") draw(packLegend(heatmap_lgd,chrom_lgd,continent_lgd, direction = "horizontal"), x = unit(0.775, "npc"), y = unit(0.85, "npc")) }) grobGgplot = grid.grabExpr({ print(conservedInfo_current_plot) }) gl = list(grobGgplot, grobHeatmap) lay <- rbind(c(1,1,1,1,NA,NA,NA,NA,NA,NA,NA,NA,NA,NA), c(1,1,1,1,NA,NA,2,2,2,2,2,2,2,2), c(1,1,1,1,NA,NA,2,2,2,2,2,2,2,2), c(1,1,1,1,NA,NA,2,2,2,2,2,2,2,2), c(1,1,1,1,NA,NA,2,2,2,2,2,2,2,2), c(1,1,1,1,NA,NA,NA,NA,NA,NA,NA,NA,NA,NA)) pdf("test.pdf", width = 10, height = 10, useDingbats = F) grid.arrange( grobs = gl, layout_matrix = lay ) dev.off() ``` ```{r} #| fig-column: screen-inset-shaded allByAllComp_select_mat_noLabels_mod = allByAllComp_select_mat_noLabels allByAllComp_select_mat_noLabels_mod = allByAllComp_select_mat_noLabels_mod - min(allByAllComp_select_mat_noLabels_mod, na.rm = T) allByAllComp_select_mat_noLabels_mod[is.na(allByAllComp_select_mat_noLabels_mod)] = 0 Heatmap3D(allByAllComp_select_mat_noLabels_mod - min(allByAllComp_select_mat_noLabels_mod)) ``` ## Chromosome vs chromosome percent identity Comparison of the chromosomes vs between chromosomes, for chromosome 11 and 13 they are just as closely related to the same chromosome as between the chromosomes, unlike the [chr05 and chr07 chromosomes rRNA loci](../sharedBetween05_and_07/characterizingSharingInPacbio.qmd#chromosome-vs-chromosome-percent-identity) where the same chromosomes are more closely related than between chromosomes. Could be suggestive that chr11 and chr13 are inter-combining more than chr05 and chr07 ```{r} allByAllComp_mod = allByAllComp %>% group_by(ReadId, OtherReadId) %>% mutate(read1_chrom = ifelse(grepl("_11", ReadId), "chrom11", "chrom13"))%>% mutate(read2_chrom = ifelse(grepl("_11", OtherReadId), "chrom11", "chrom13")) %>% mutate(comparisonCategory = paste0(sort(c(read1_chrom, read2_chrom)), collapse = "--") ) %>% ungroup() ggplot(allByAllComp_mod) + geom_boxplot(aes(x = comparisonCategory, y = perId)) + sofonias_theme + #scale_y_continuous(limits = c(min(allByAllComp_mod$perId), 1)) + scale_y_continuous(limits = c(0.990, 1)) ``` # Writing out region ```{r} outBed = tibble( `#chrom` = c("Pf3D7_11_v3", "Pf3D7_13_v3"), start = c(1918029, 2792022), end = c(1933390, 2807397), name = c("Pf3D7_11_v3-1918029-1918124--Pf3D7_11_v3-1933291-1933390__Pf3D7_13_v3-2792022-2792117--Pf3D7_13_v3-2807298-2807397", "Pf3D7_11_v3-1918029-1918124--Pf3D7_11_v3-1933291-1933390__Pf3D7_13_v3-2792022-2792117--Pf3D7_13_v3-2807298-2807397") ) outBed = outBed %>% mutate(len = end -start) %>% mutate(strand = "+") create_dt(outBed) write_tsv(outBed, "investigatingChrom11Chrom13/shared_11_13_region.bed") ```
